L-Type Shrink-Wrapping Machine

Compact film wrapping and shrink-tunnel equipment for lower-output or flexible pack-format requirements.

Flexible packs
L-seal wrapping
Shrink tunnel

Compare specifications Request a proposal

L-Type Shrink-Wrapping Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Model	PM-LW-10
Applicable Container	Plastic bottle, Glass bottle, Tins and Cans
Maximum package size	400x300x400(height)mm
Machine Dimension	450x300x400(height)
Transfer Belt Width	700mm
Shrinkage temperature	130-260℃
Sealing And Cutting Time	0-6s
Heat sealing and cutting temperature	150-200℃
Packaging Speed	600 BPS/h
Operating Power Supply	3 phase 380V 24KW
Number of bottles per package (round or square)
4 columns 4 x 6 4 x5 applicable bottle size	4 x 4 Φ 40 - Ф 70 mm
3 columns 3 x 3 applicable bottle size	3 x 4 Ф 70 - Ф 98 mm
2 columns 2 x 3 bottle diameter	2 x 4 Ф 98 - Ф 140 mm
1 column 1 x 2 x 1 applicable bottle diameter	1 x Ф140 - Ф300 mm

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

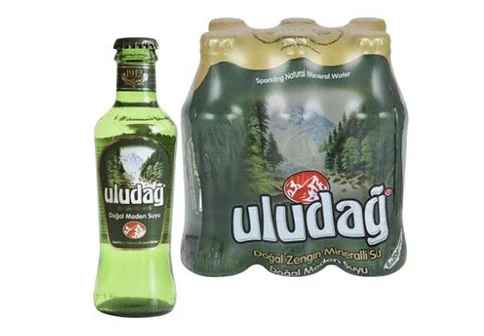

Glass bottles
Suitable : Beer, wine, brandy, vodeka
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..

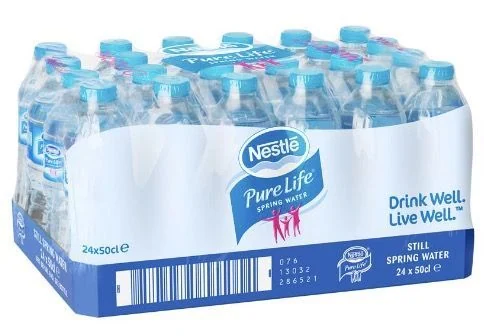

Plastic bottles
Suitable: Water, juice, soft drink etc..
Bottle Type : Round / Square / Unique.

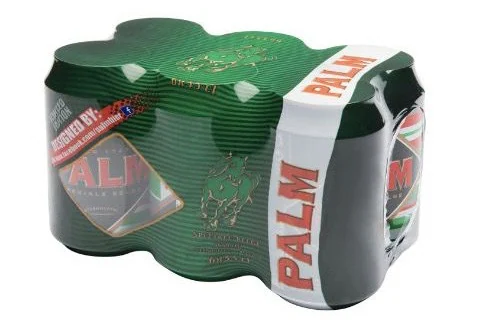

Tins & cans
Suitable : Daily chemical products.

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

Shrink Wrapping is a process that involves the application of temperature sensitive films. When heat is applied to the film it shrinks tightly to whatever it is covering. Shrink wrapping equipment is available for a variety of product sizes and in both automatic and semi-automatic formats. At Paima Packaging, we can help you find the right shrink wrap machines that are tailored to your operation's unique needs.

01 / MACHINE STAGE

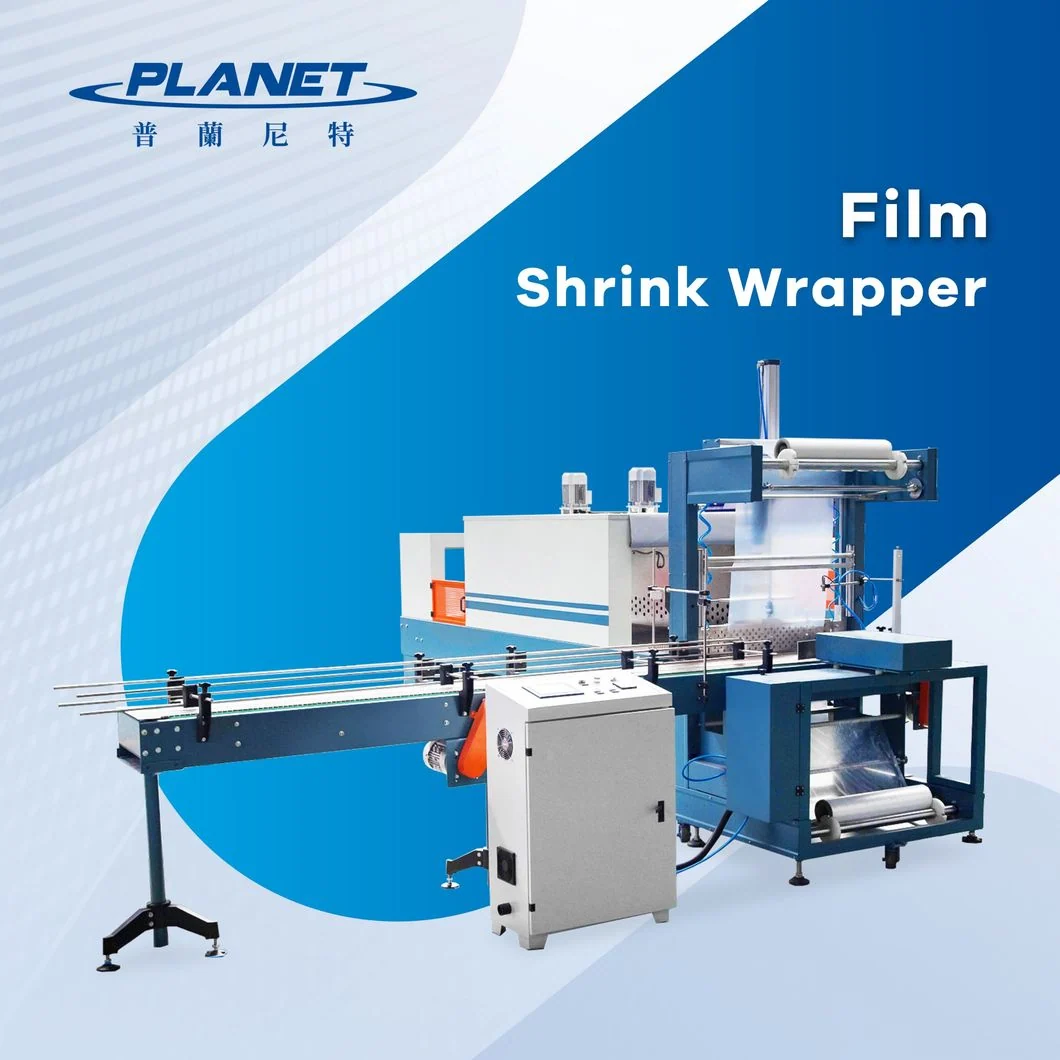

Features of L type shrink wrapping machine

It is convenient to adjust the packaging combination and bottle type when changing, which can realize the multi-purpose function of one machine;

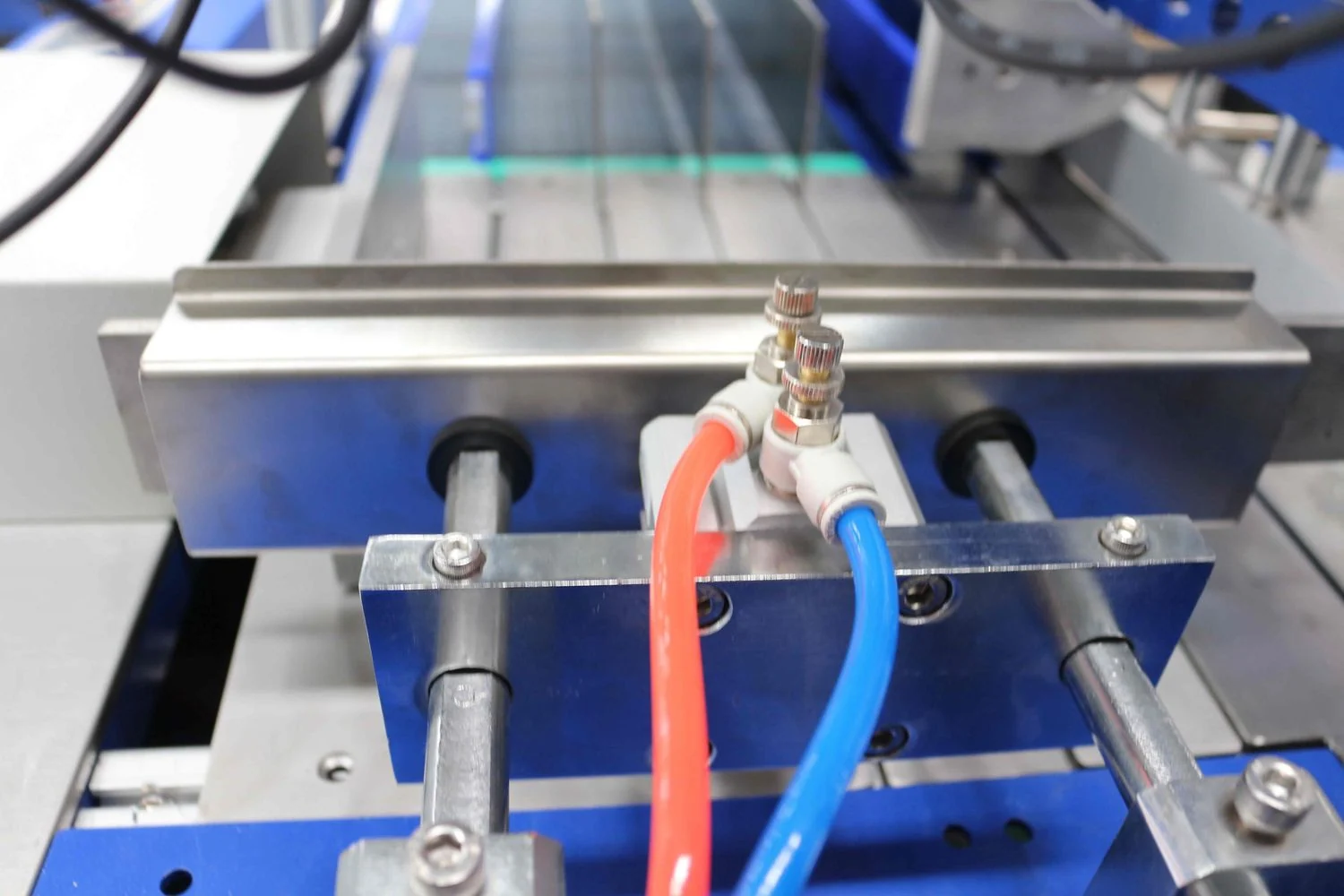

The shrinkage and sealing temperature of the film wrapping machine is automatically controlled, and it can be changed according to needs; 3. Imported original guide rod cylinder for high-speed film charter, reliable and stable action; 4. Constant temperature sealing and cutting knife, the sealing edge is firm, and the cutting is fast;

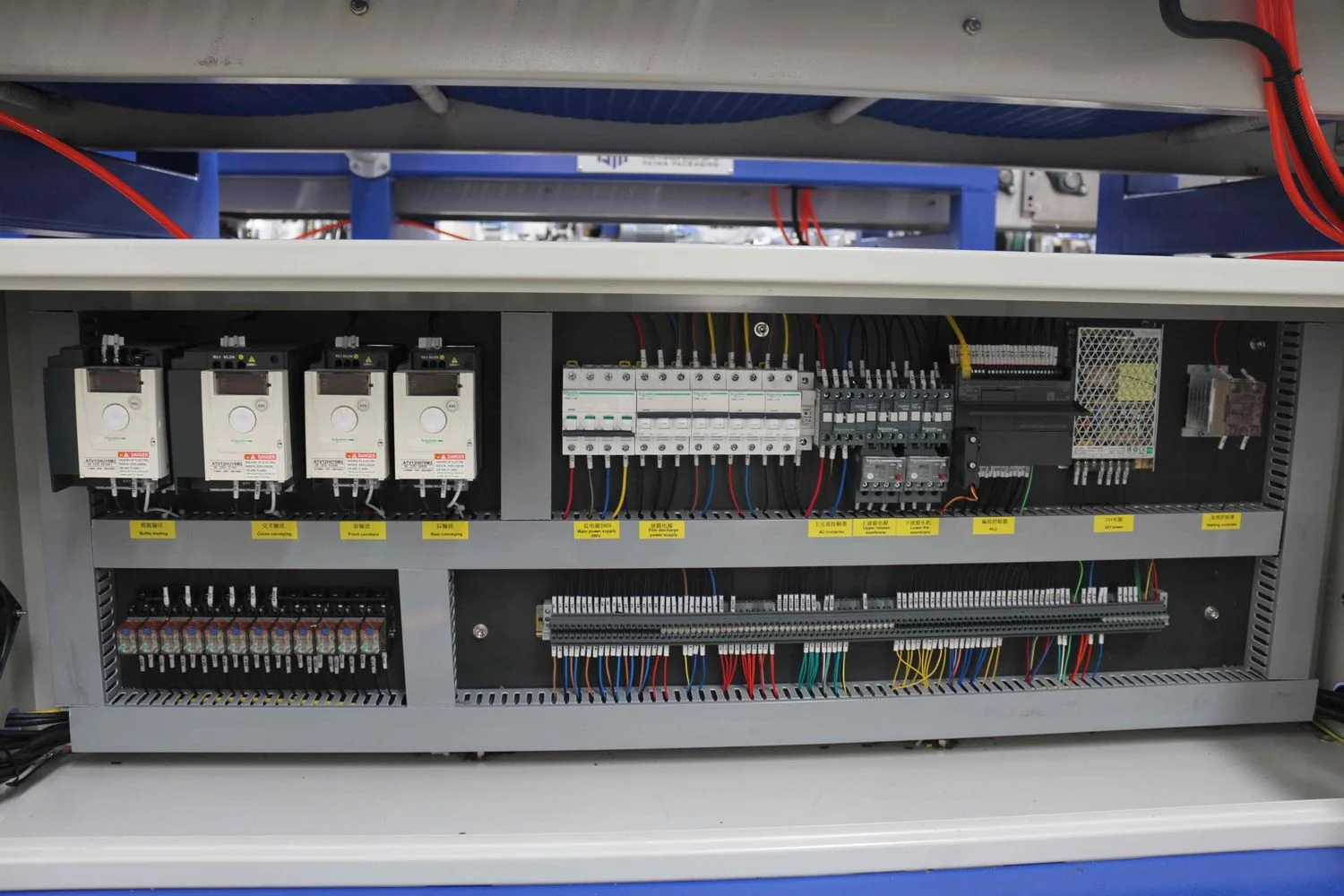

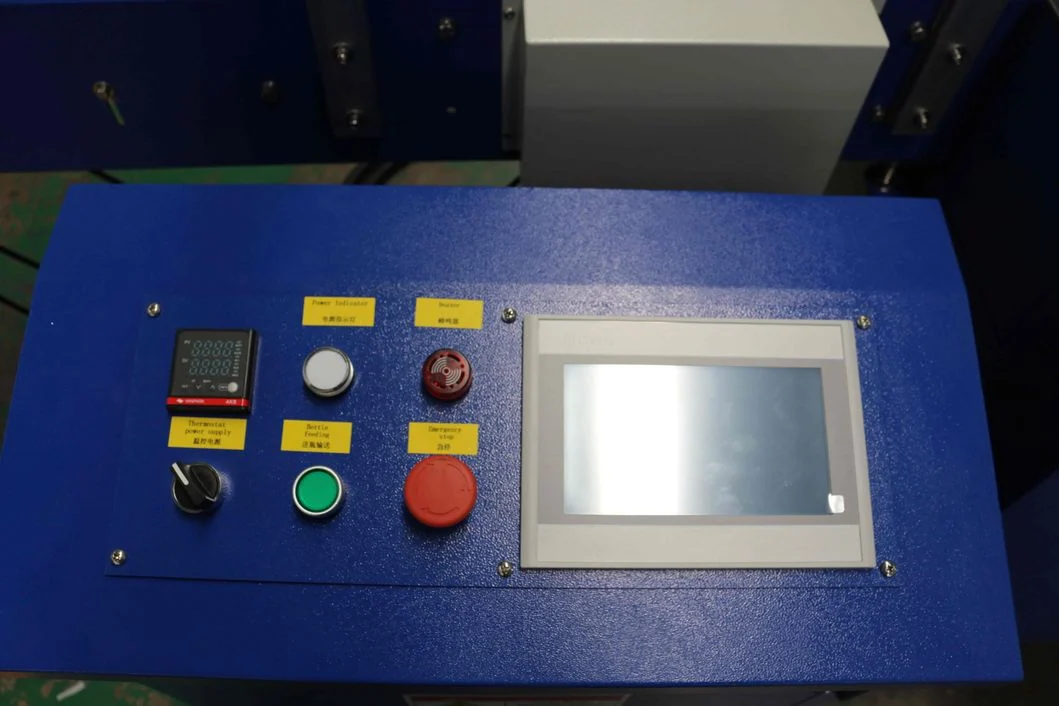

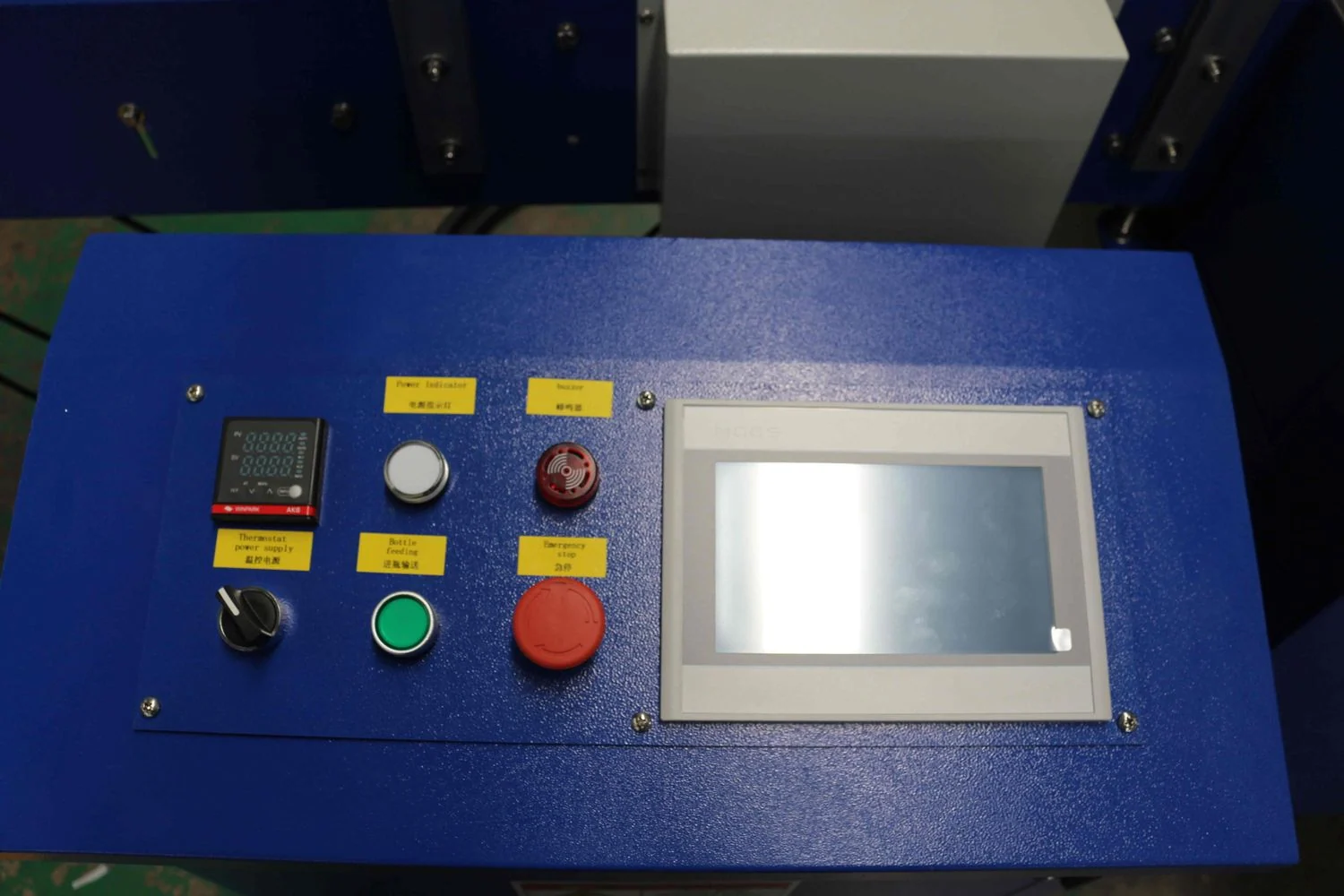

Programmable controller (PLC) control, suitable for lean and flexible production lines;
The three-layer heat insulation treatment of the high-speed film wrapping machine has good heat preservation performance, fast heating, and energy saving; 7. Packaging without backing, suitable for packaging with different bottle diameters and different combinations;
The temperature of the heat shrinking furnace is set by a temperature controller, and the temperature of the area is individually controlled, and the control is accurate;
The product has beautiful shrinkage effect, firm package, unique structure, energy saving and high efficiency.
