5–19L Water Filling Machine

An integrated rinse, fill and cap machine for 5–19 L PET water containers. Compare four published CGF models and see how the machine connects to the line.

  • Large PET
  • Drinking water
  • 5–19L containers
Compare specifications Request a proposal

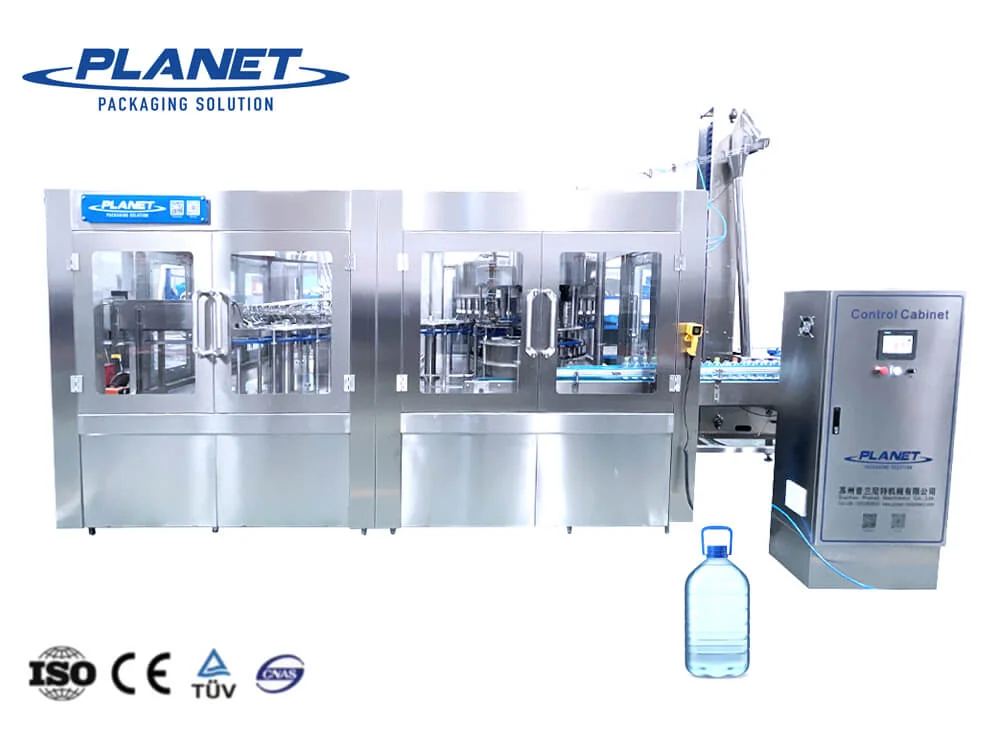

5–19L Water Filling Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

01

Technical specifications

Modelwashing headsfilling headscapping headscapacityfilling typesuitable bottle sizetotal poweroverall dimension(L*W*H)Machine weight
CGF12-12-4G121241000-1500bphgravity filling5-19L4kw4220*3200*2450mm8500kg
CGF16-16-4G161642000-2500bph5.5kw4530*3650*2350mm9800kg
CGF24-24-6G242463000-3500bph7kw5200*4250*2450mm11000kg
CGF32-32-8G323284000-4500bph11kw5915*4250*2450mm1300kg

The source record lists the CGF32-32-8G weight as 1,300 kg; please confirm that value when selecting a model.

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Published PET container examples
Published PET container examples

Application notes

  1. Direct transfer from the air conveyor to the infeed wheel simplifies bottle changeovers.
  2. Neck handling reduces the need to reset conveyor height when bottle shapes change.
  3. Stainless steel rinsing grippers avoid contact with the bottle mouth.
  4. Gravity filling valves support controlled, accurate filling with less product loss.
  5. A spiral discharge guides filled bottles onto the outfeed conveyor.
  6. PLC controls coordinate rinsing, filling and capping in one automatic sequence.

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Machine layout

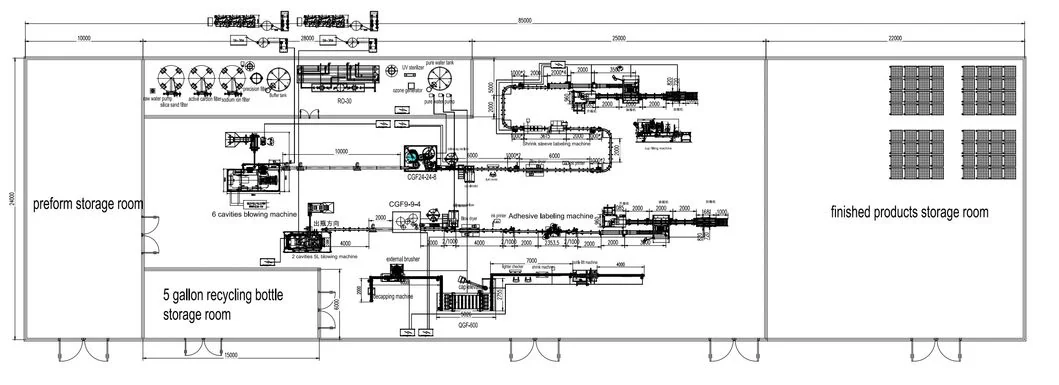

LINE PLANMachine layoutOpen full image ↗
Air Conveyor
01 / MACHINE STAGE

Air Conveyor

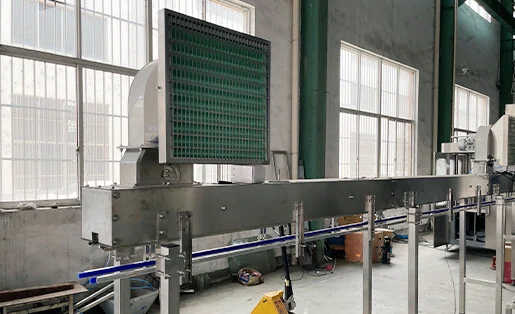

  • Floor mounted air conveyor with fans and filters at the air inlets.
  • Bottles are held by the neck and carried toward the filling machine by airflow.
  • The source record specifies stainless steel conveyor components and a welded steel support frame.
Bottle Washing
02 / MACHINE STAGE

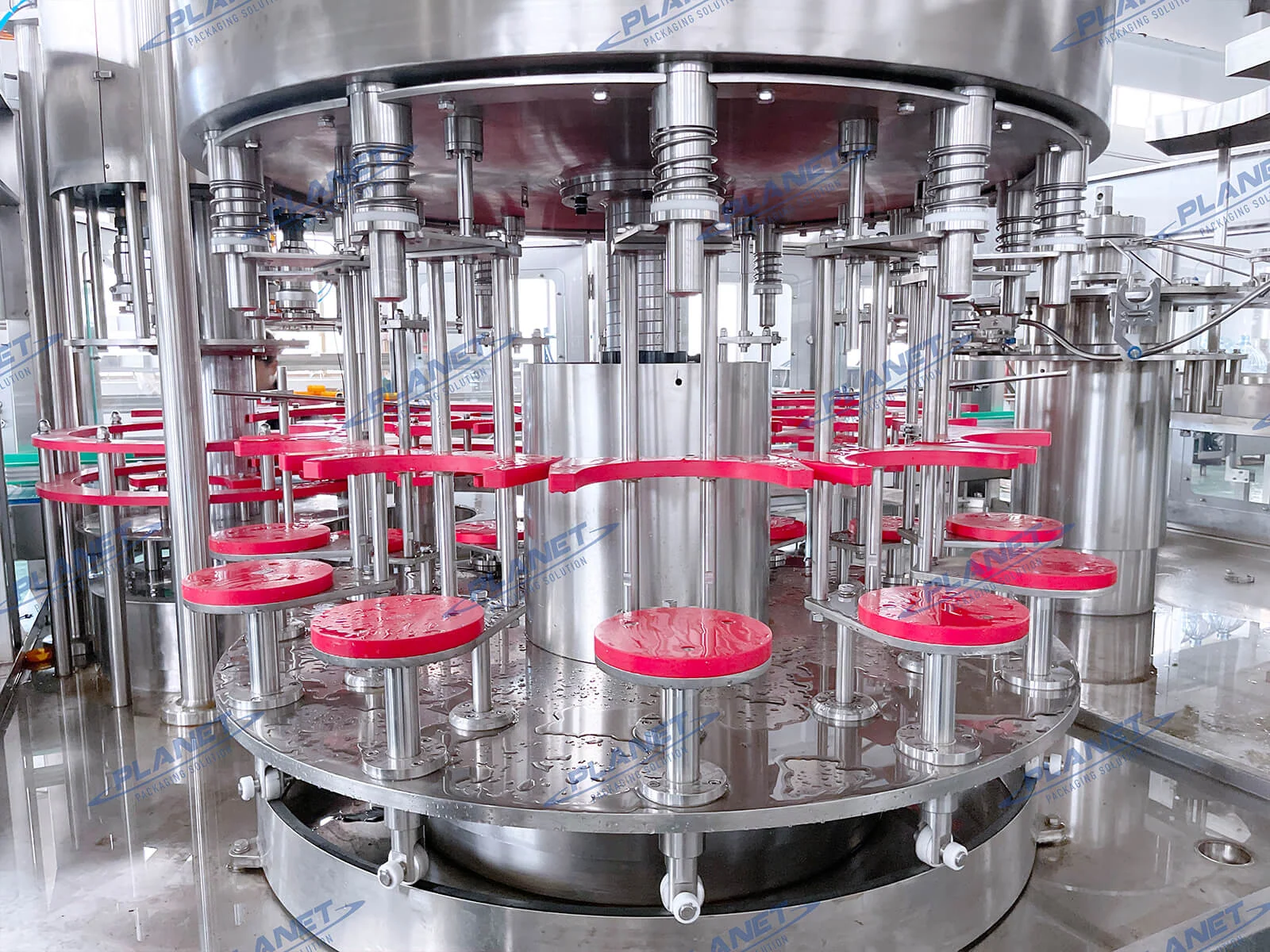

Bottle Washing

  • The air conveyor connects directly to the bottle infeed wheel.
  • Stainless steel spray rinsing heads are designed to clean bottles while limiting water use.
  • Stainless steel grippers with plastic pads reduce bottle contact during washing.
  • The published configuration includes a stainless steel washing pump.
Conventional Type Filling
03 / MACHINE STAGE

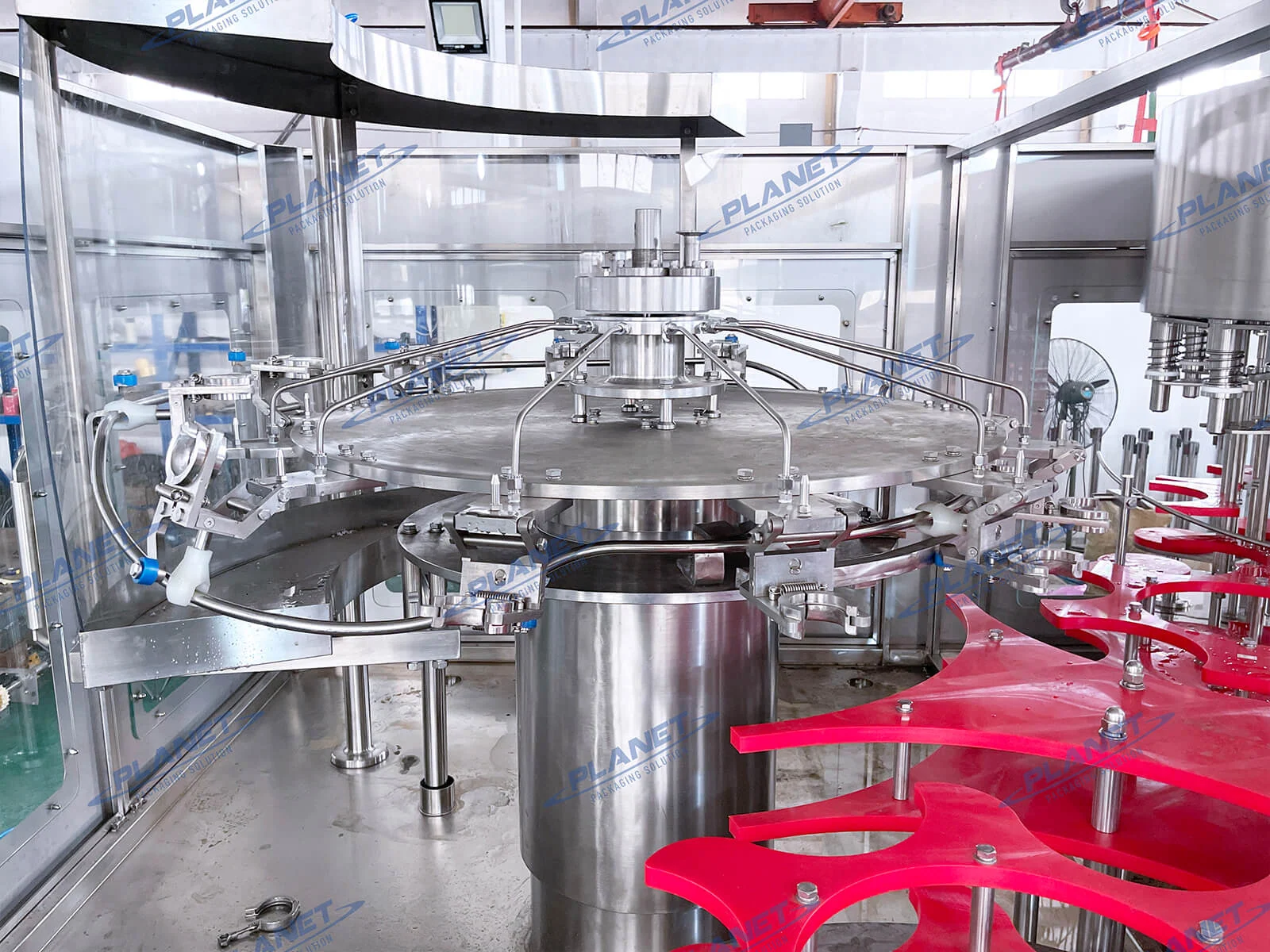

Conventional Type Filling

  • Filling volume can be adjusted to maintain a consistent liquid level.
  • The source specifies polished stainless steel liquid contact parts and a stainless steel filling pump.
  • Rinsing nozzles are designed to clean bottles while limiting water use.
Bottle capping
04 / MACHINE STAGE

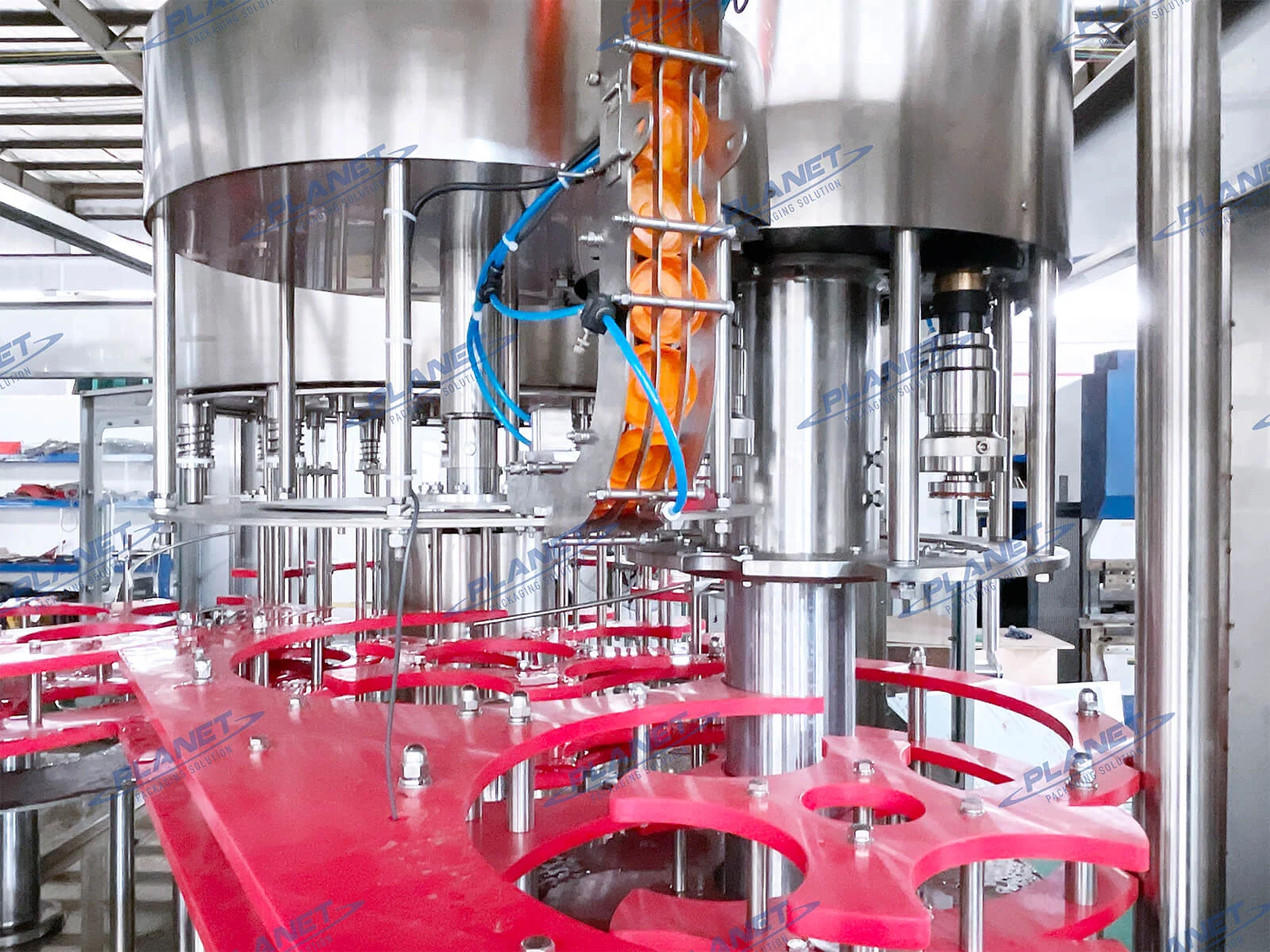

Bottle Capping.Bottle capping

  • Place and capping system, electromagnetic capping heads, withburden discharge function, make sure minimum bottle crash duringcapping.
  • All 304/3l6 stainless steel construction.
  • No bottle no capping.
  • Automatic stop when lack of bottle.
  • Capping effect is stable and reliable, Defective rate ≤0.2%
