An automatic three-in-one line for mineral, drinking and purified water. Compare nine published CGF models, bottle formats and the equipment that connects the line.

Compare models Request a proposal

Planet Machinery automatic water rinsing, filling and capping machine

Production video

Water filling line in motion.

10,000 BPH Rinse, fill and cap

Watch the bottled-water production line shown in the original video, then compare machine models for your bottle and target output.

Compare models Request a proposal

Published product parameters

Find the right CGF model.

Nine models are listed on the source page. Output, dimensions and utilities are published reference values; confirm the final configuration against your bottle and acceptance conditions.

Shared model-table basisGravity fillingBottle Ø50–96 mmBottle height 165–310 mm

Model	Washing heads	Filling heads	Capping heads	Capacity	Power	Dimensions (L × W × H)	Weight
CGF14-12-5	14	12	5	4,000–5,000 BPH	3 kW	2360 × 1770 × 2350 mm	2,000 kg
CGF18-18-6	18	18	6	8,000–9,000 BPH	3.5 kW	2930 × 2150 × 2450 mm	4,200 kg
CGF24-24-8	24	24	8	10,000–12,000 BPH	5 kW	3300 × 2250 × 2450 mm	5,500 kg
CGF32-32-8	32	32	8	13,000–15,000 BPH	5 kW	3430 × 2650 × 2450 mm	6,500 kg
CGF40-40-10	40	40	10	15,000–18,000 BPH	9 kW	4430 × 3280 × 2450 mm	9,500 kg
CGF50-50-15	50	50	15	22,000–24,000 BPH	9 kW	4720 × 3550 × 2450 mm	15,000 kg
CGF60-60-15	60	60	15	28,000–30,000 BPH	13 kW	6000 × 5450 × 2550 mm	18,000 kg
CGF72-72-18	72	72	18	33,000–36,000 BPH	18 kW	6500 × 4680 × 2550 mm	25,000 kg
CGF80-80-22	80	80	22	40,000–42,000 BPH	23lw	7800 × 6380 × 2550 mm	27,000 kg

The legacy page lists the CGF80 power as “23lw”; this apparent typo is retained in the table pending confirmation. Its product introduction gives a narrower output range than the nine-model table.

02 / Applicable bottle type

Plan around the bottle you will run.

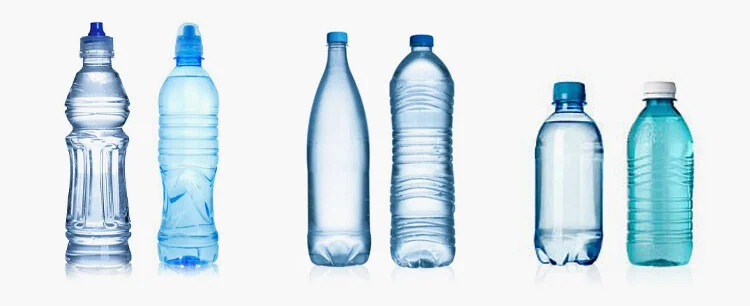

Six examples of PET water bottle shapes and sizes — Original applicable-bottle examples

Published bottle-format range

Material: PET
Shape: Round, square or customized
Diameter: 50–105 mm
Height: 160–335 mm
Filling volume: 100–2,000 ml

The separate CGF model table specifies a narrower common dimensional basis. Confirm the intended bottle drawing during model selection.

Six practical design details

Retained and edited for clarity from the original bottle-type section.

Direct bottle transfer

The air conveyor connects directly to the transfer wheel, reducing screw and chain adjustments during bottle-format changes.

Neck-grip handling

Bottles are held at the neck. Format changes focus on the guide plate, star wheel and nylon change parts rather than the equipment height.

Hygienic rinsing

Stainless-steel washing grippers avoid contact with the bottle mouth to reduce the risk of secondary contamination.

Gravity filling

High-flow filling valves are designed for fast, accurate filling with reduced product loss.

Simpler discharge changes

The spiral bottle outlet is designed to avoid conveyor-height adjustment when changing bottle formats.

Automatic control

The main machine uses PLC-based automatic control.

03 / Machine layout

See the complete line.

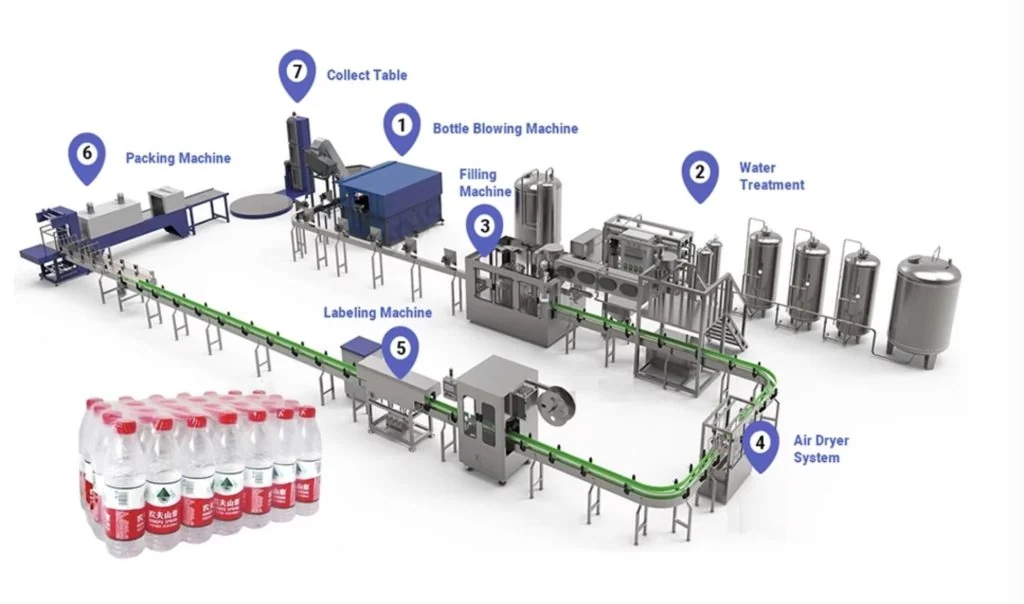

The original layout illustration shows the filling machine in the context of blowing, water treatment, drying, labeling, packing and collection.

Original illustrated water bottling line layout with seven labeled production stages — Illustrative line layout from the original product page

Automatic bottle blowing machine

Air conveyor system

3-in-1 washing, filling and capping machine

Bottle conveyor system

Automatic line equipment

Sleeve labeling machine

Film shrink packer or carton packer

Inside the process

Four equipment details.

01 / Process detail

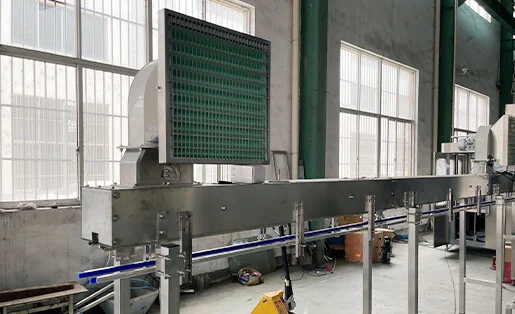

Air conveyor

Neck-held bottles move from the blowing stage into the filling machine by air flow.

Floor-mounted conveyor with fans above
Air filters at each fan inlet to limit dust entering bottles
SUS 304/316 stainless-steel construction and welded carbon-steel rack

02 / Process detail

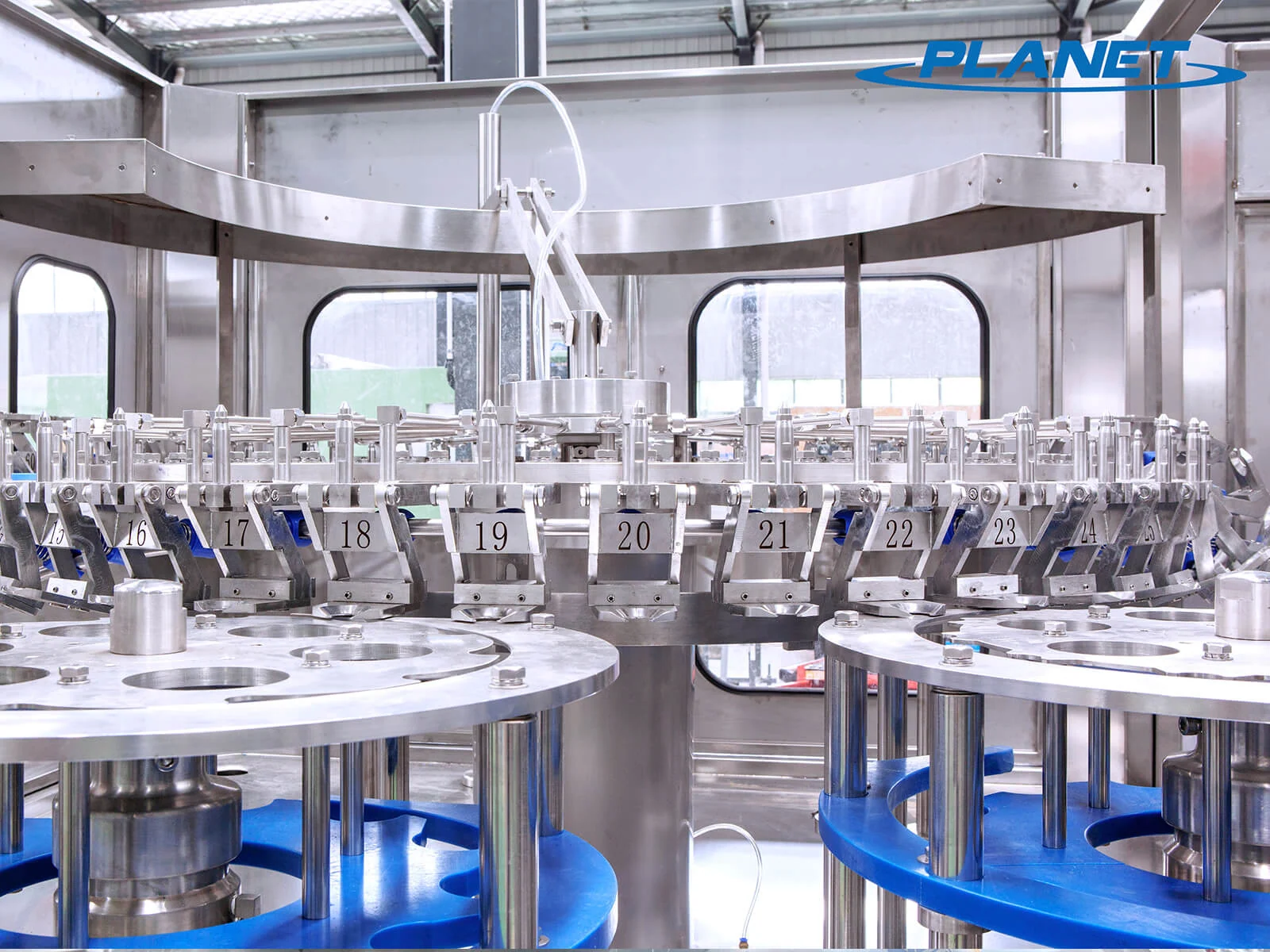

Bottle washing

The air conveyor feeds directly into the bottle infeed dial for rinsing.

304/316 stainless-steel spray rinse heads
Stainless-steel grippers with plastic pads to reduce bottle damage
304/316 stainless-steel washing pump

03 / Process detail

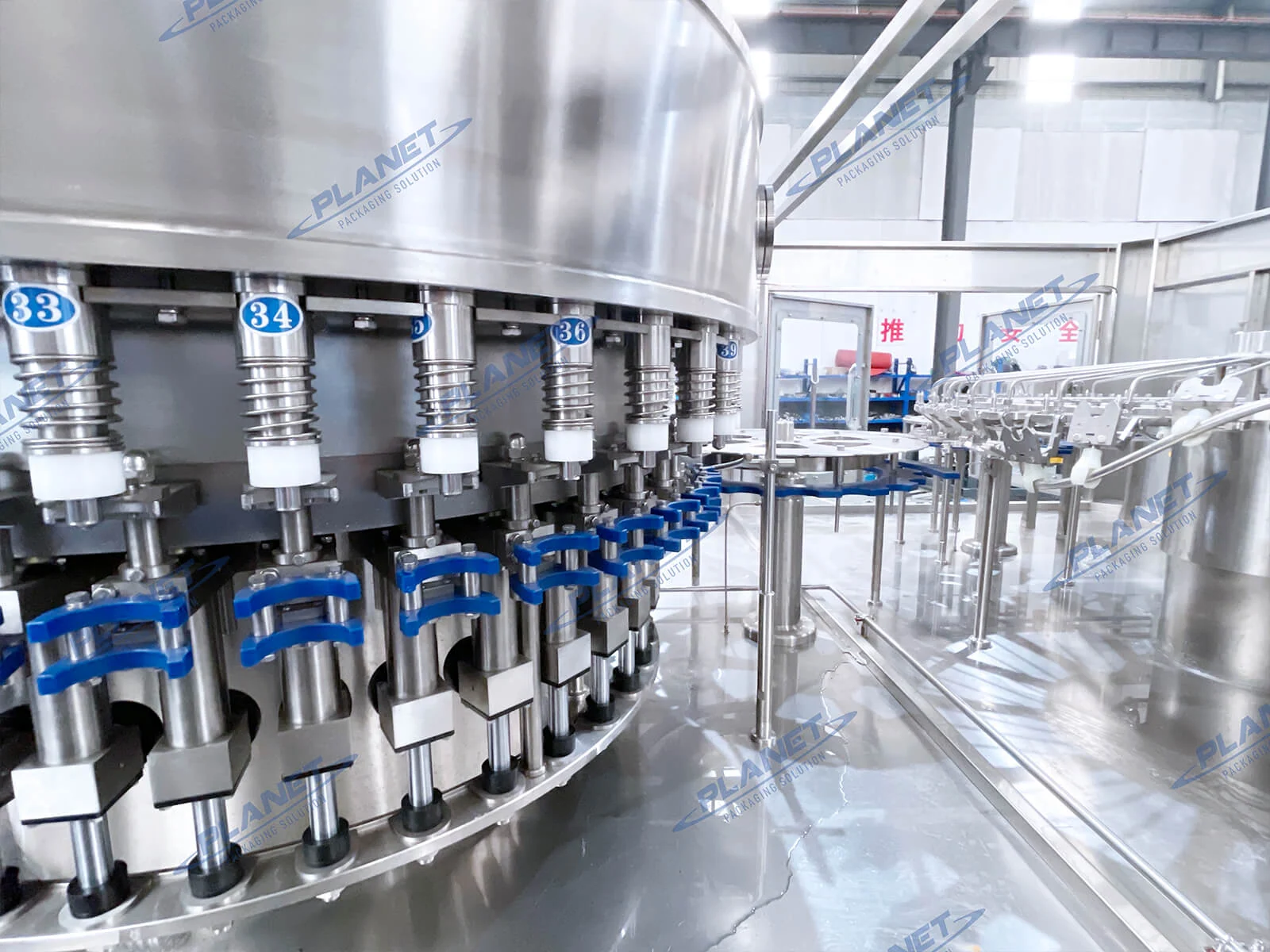

Bottle filling

The filling station is designed to keep fill levels consistent across bottles.

Fine adjustment of filling volume
Polished 304/316 stainless-steel contact parts and liquid tank
Stainless-steel filling pump and efficient rinse nozzle

04 / Process detail

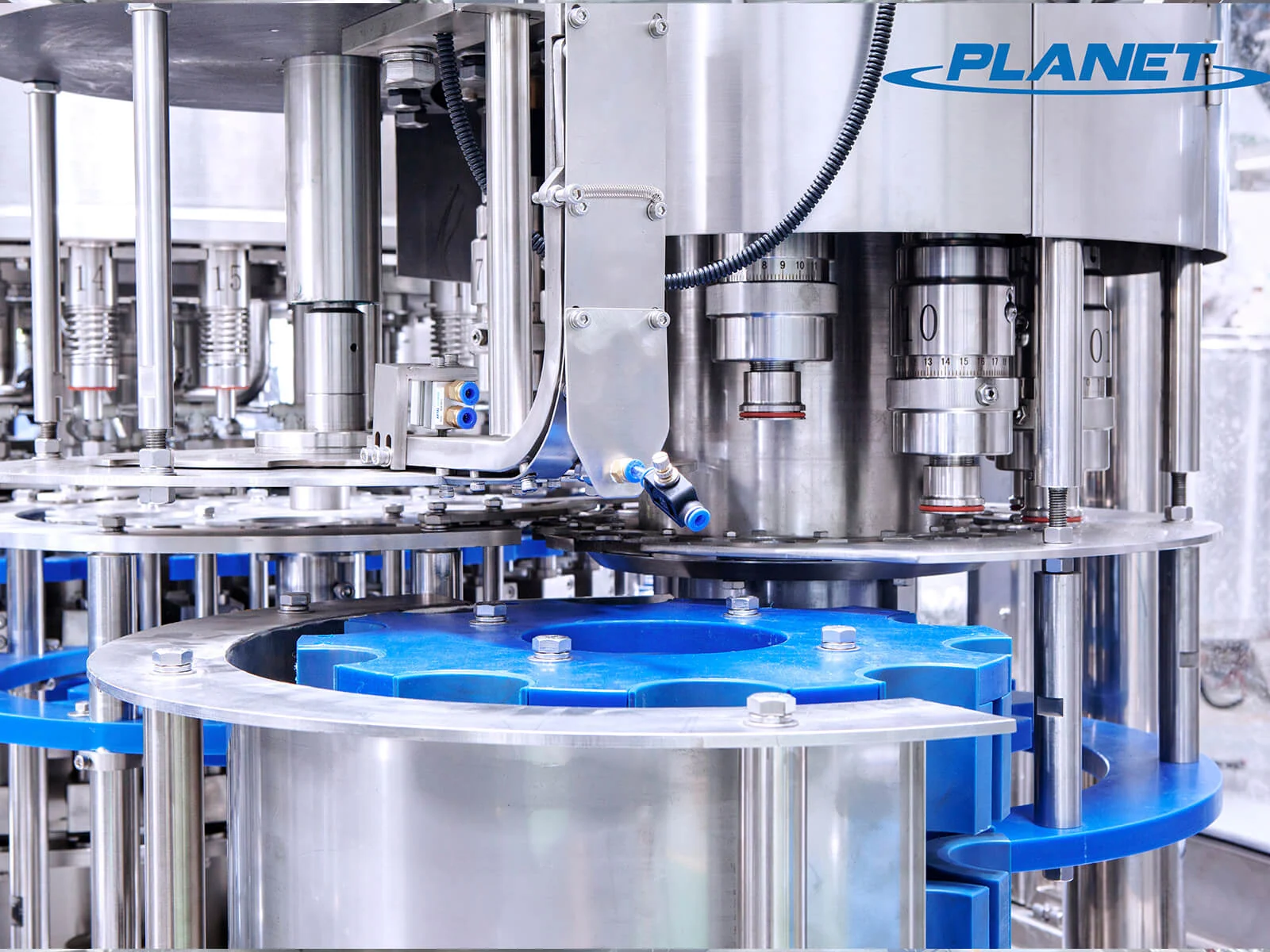

Bottle capping

Electromagnetic capping heads complete the rinse–fill–cap sequence.

No-bottle, no-cap operation and automatic stop if bottles are missing
304/316 stainless-steel construction
Published defective rate of ≤0.2%, subject to project acceptance

Turn-key solution

Define the line around your site.

Beyond the filler, the original line brief lists container handling, labels, packing, palletizing and site requirements. These choices are specified for the project rather than implied by a single machine model.

Discuss your line

Legacy line brief: Full automatic complete water line, labeled 2,000–48,000 BPH. The nine published CGF machine models have their own capacity ranges above.
Product: Drinking water (legacy line brief lists pH ≥ 4.6)
Container: PET; round or square bottle. Fill level and neck finish are set to the project brief.
Changeover: Additional change parts are required for different bottles. Square bottles also require a bottle-separating system.
Label options: Hot-melt roll-fed or PVC shrink sleeve; full or partial label; manual or automatic control.
Packing options: Film shrinker or wrap-around case packer; manual and robotic options are listed in the legacy brief.
Palletizing options: Manual, low/high-position gantry, robot or single-arm palletizer.
Ambient: 10–40 °C; no condensation.
Electrical supply: 380 V ±5%, three phase; 50 Hz ±1%.

Project inquiry

Ready to define your bottle and output?
