Hot-Melt OPP Labeling Machine

Rotary roll-fed labeling equipment that applies OPP labels with controlled hot-melt adhesive placement.

OPP labels
Round containers
Hot-melt adhesive

Compare specifications Request a proposal

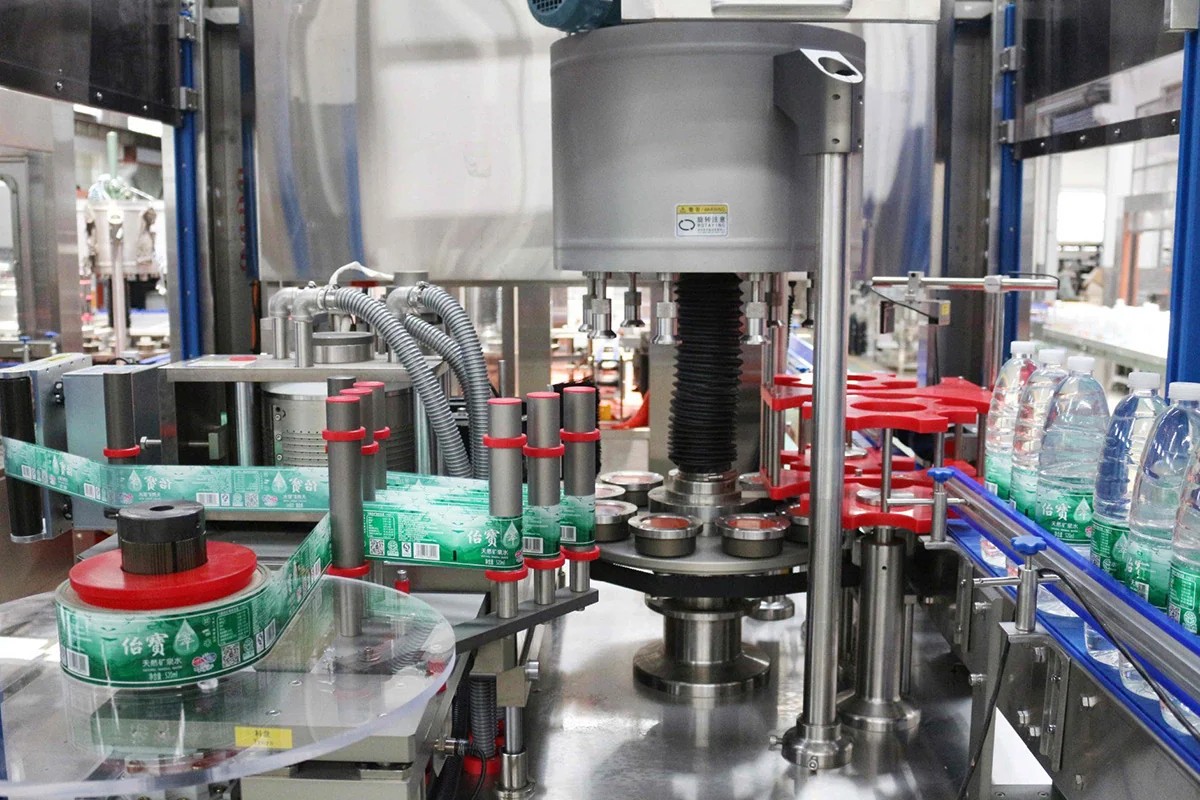

Hot-Melt OPP Labeling Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Item	Parameter data
Voltage	380V
Frequency	50Hz
Power	8KW
Available bottle dimension	Diameter:40-105mm, Height=80-350MM
Label specification	Length:125-325mm, Height:20-150mm
Gluing way	Roll painting(about 10mm, both label headand tail)
Capacity	9000-36000 bottles per hour(500ml bottle)
Glue Consumption	I kg/ 100,000bolttle(label height:50mm)
Compressed Air Pressure	MIN5.0bar MAX8.0bar
Consumption of Compressed Air	0.2M3/minute
Overall dimension	2500Kg
Total Weight	L=3150,W=1770,H=1800

Package & product fit

Containers & handling.

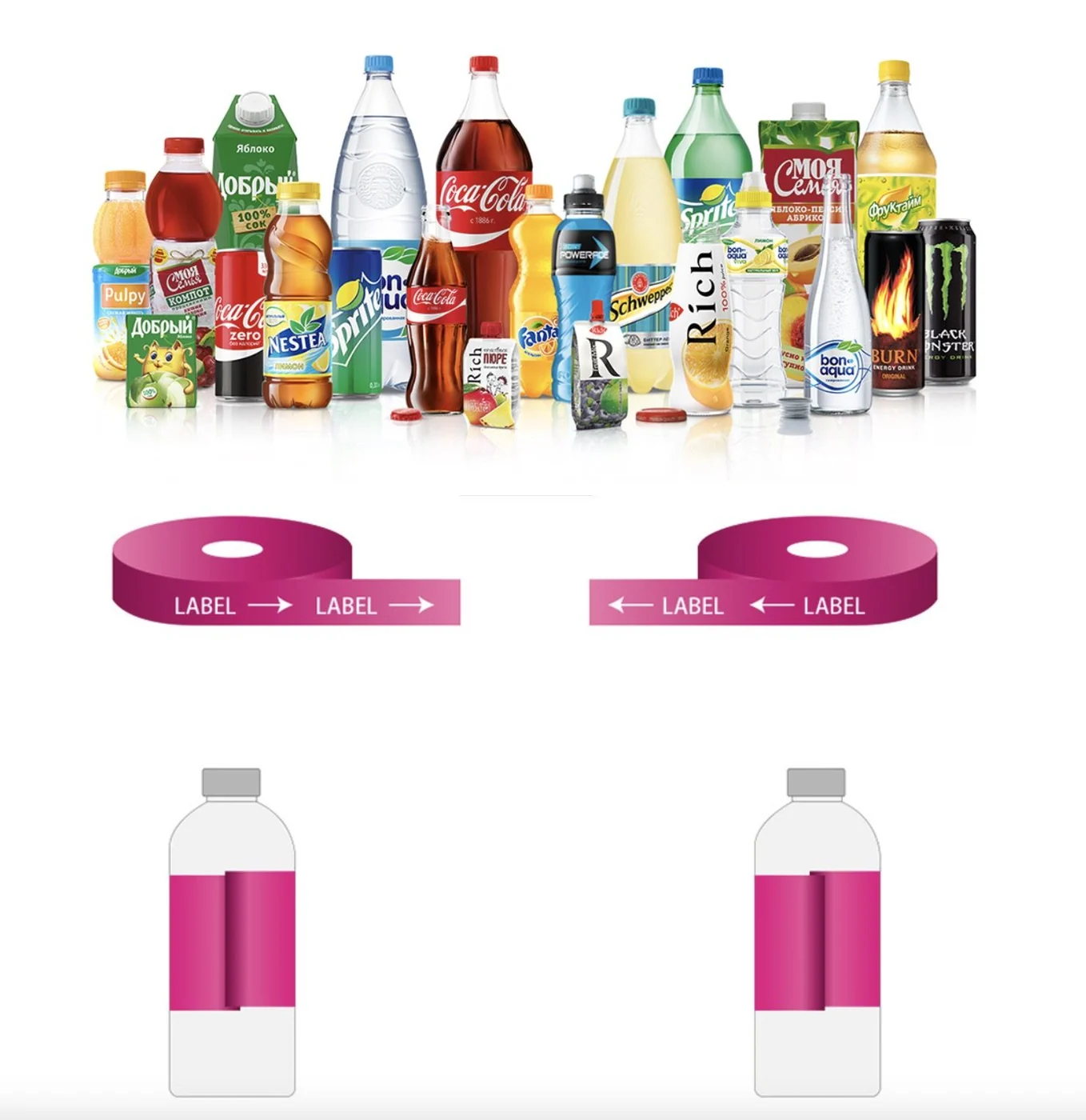

Published container examples and process guidance for the selected machine.

Application notes

OPP labels
Round containers
Hot-melt adhesive

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

This OPP labeler labeling machine, or hot melt adhesive labeler, is suitable for labeling OPP material labels, it is easy to operate, and convenient to change the mould. It's cable to work with filler, code printing machine, water treatment, and blow molding machine etc. The labeling machines are also known as labeling systems, labeling equipment, labeling machines, labeler, labeling machinery,labelling machine, labellers, labelling equipment. Many Labelling machines are not only used to dispense or apply labels, but also to print labels. There is a wide range of Labelling machines available in the market, ranging from high-production units that allow for complete automation of the print and apply process to manual devices that provide for simple label dispensing.

01 / MACHINE STAGE

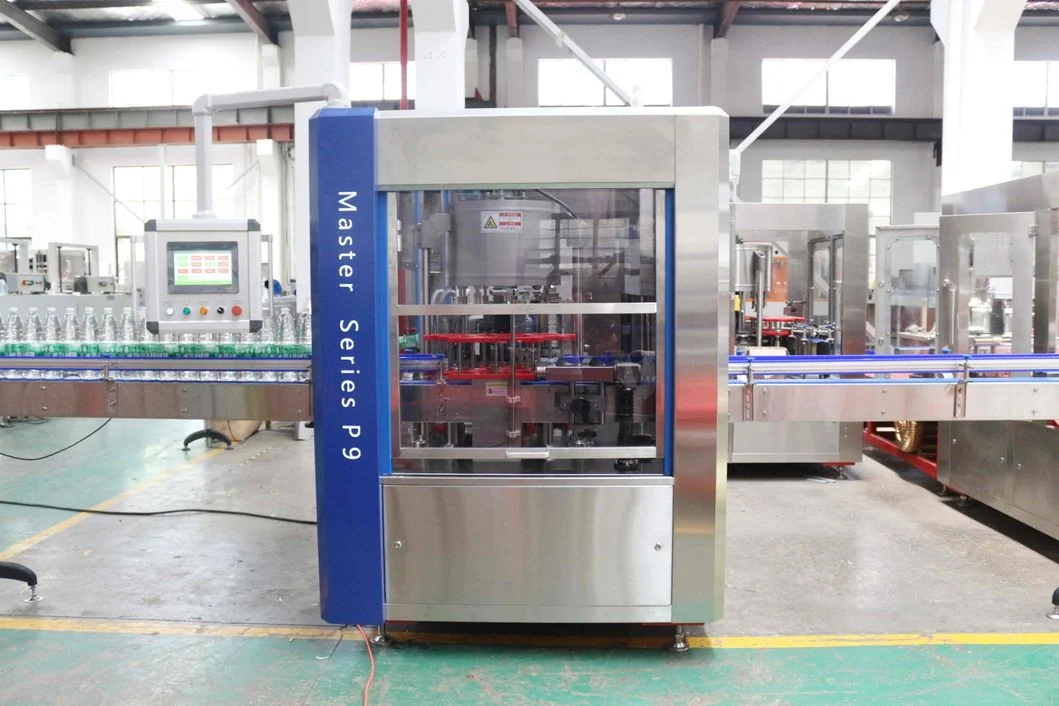

Features of OPP labeling machines

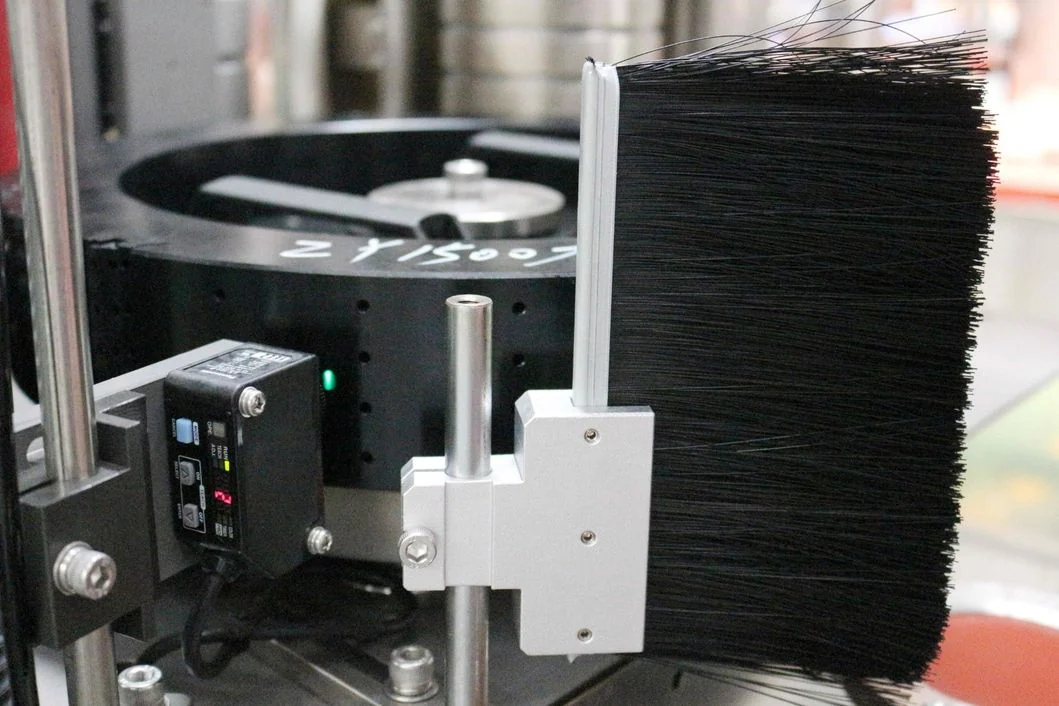

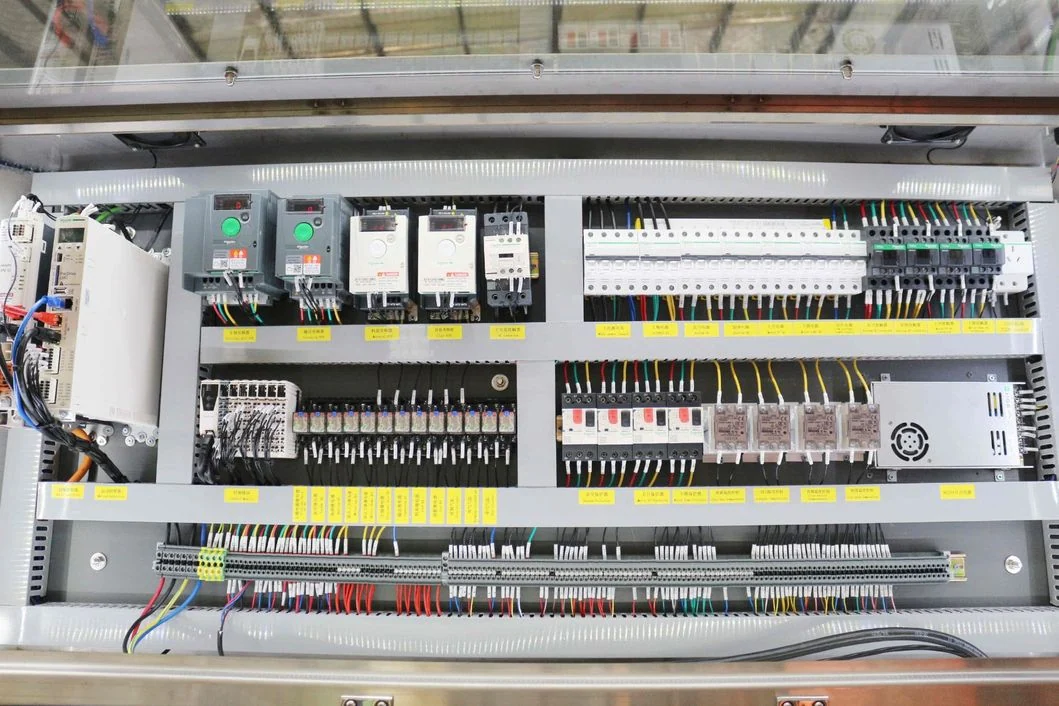

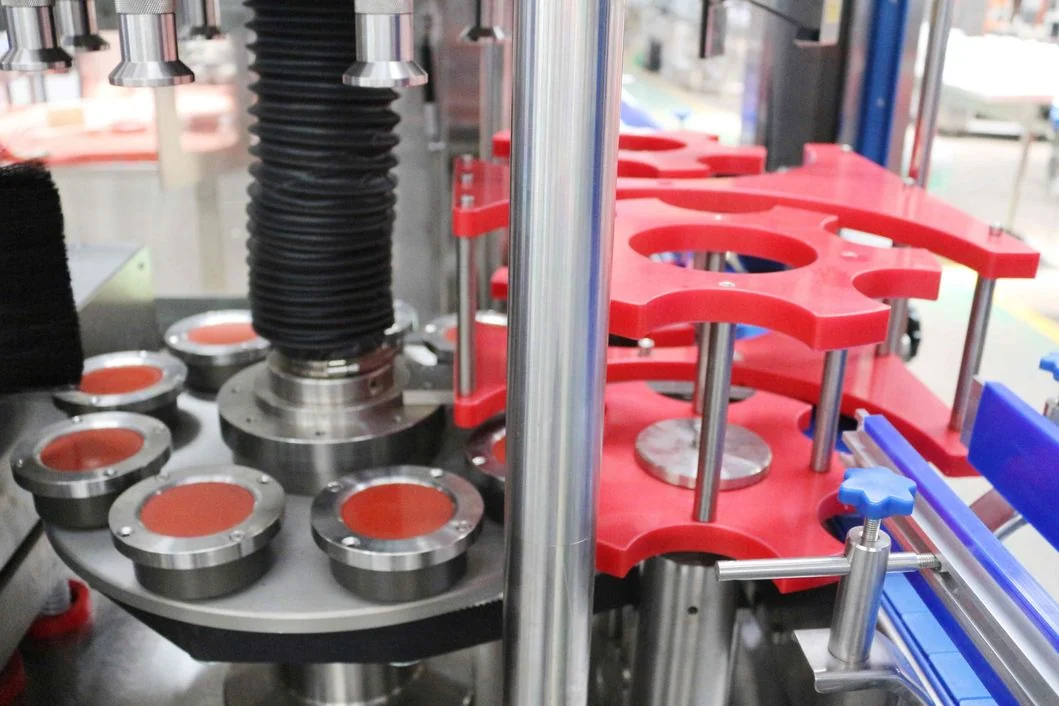

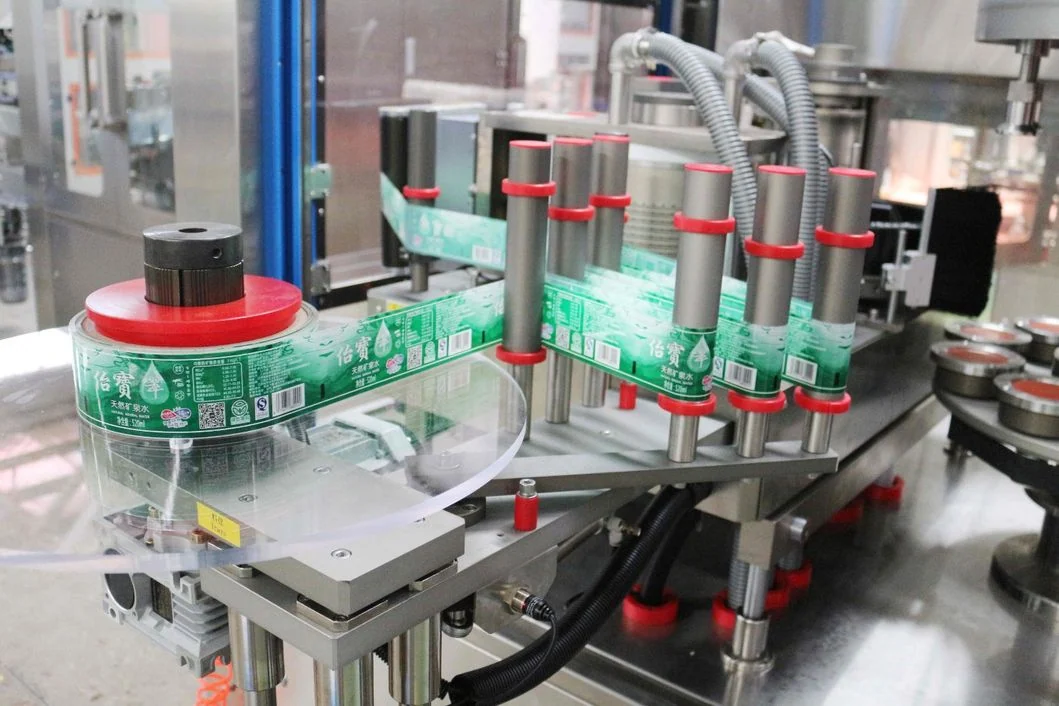

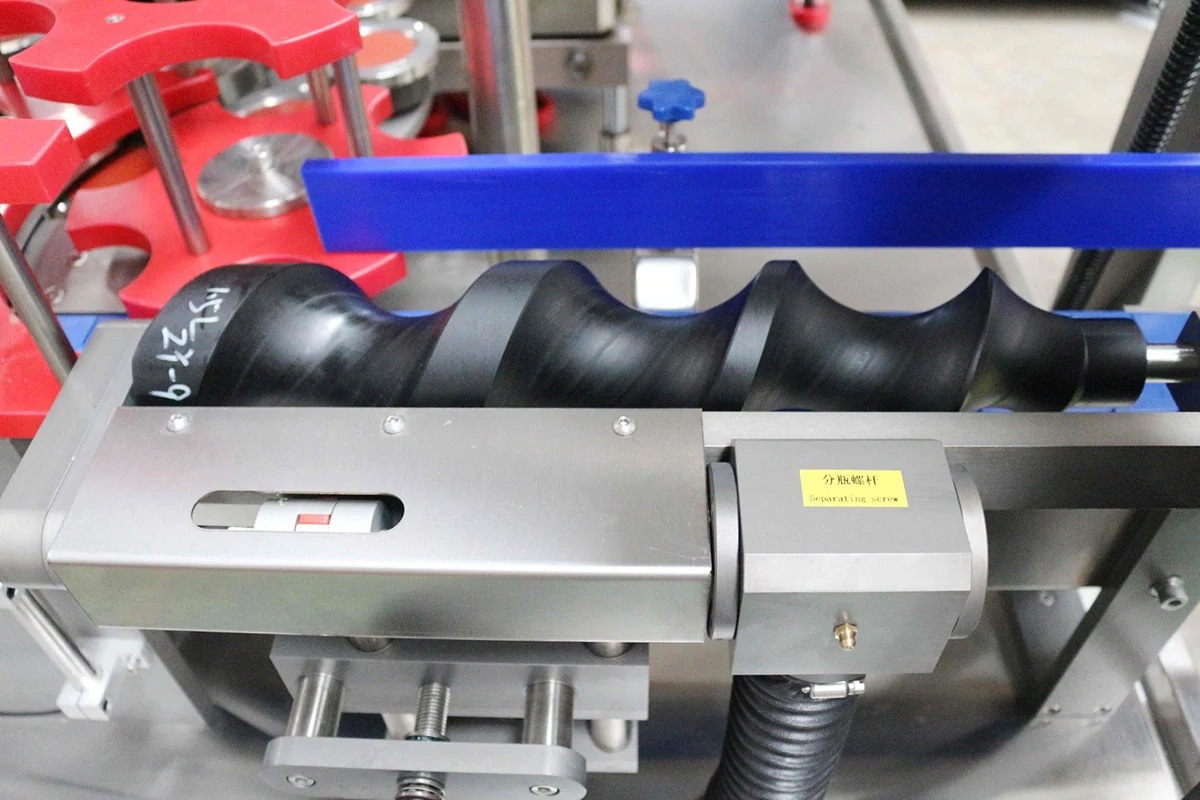

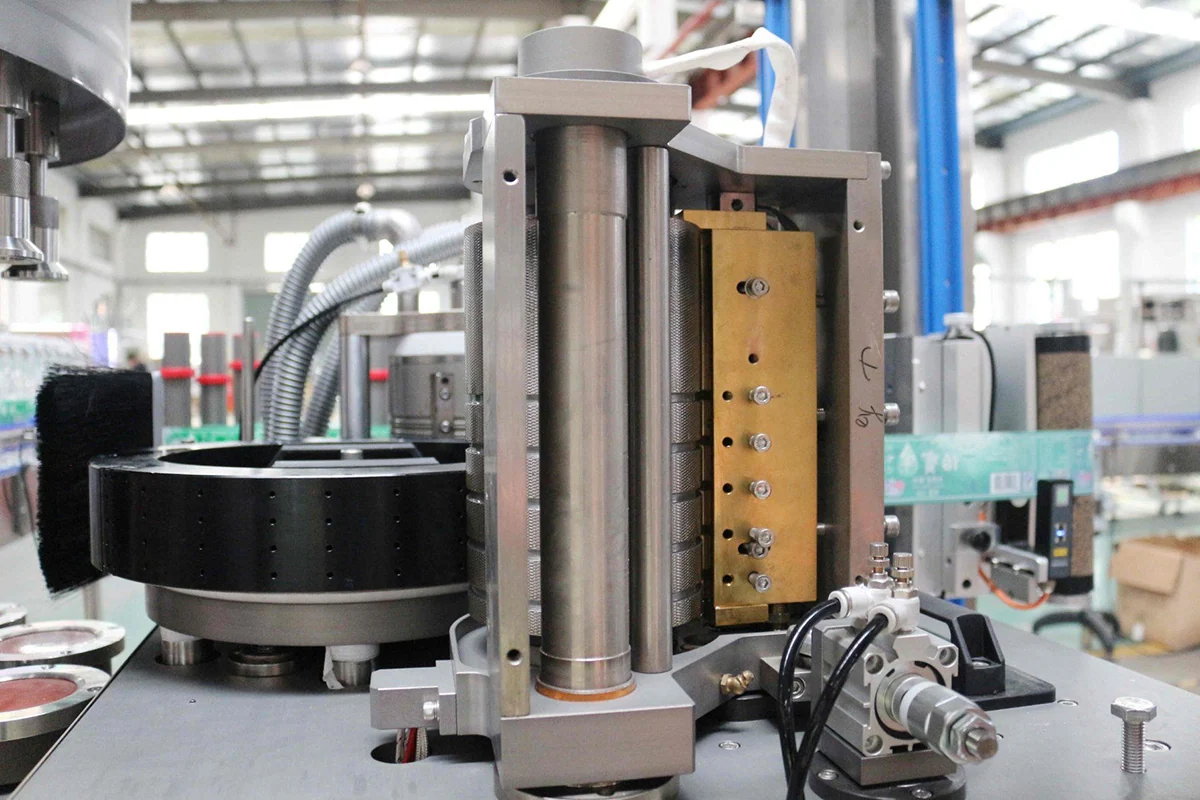

With a star-wheel carrying containers firmly while dispensing, providing stable dispensing performance under high-speed operation. Also can choose screw for bottle inlet. 2. Use servo motor to synchronously tracks label supply, label cutting and use specially designed vacuum drum to ensure precise labeling. 3. Welded, sturdy machine body enables labeling up to 600 bottles per minute without problem. 4. Three-phase PLC and AC variable control with a synchronized tracking and control system to maintain label cutting accuracy in different running speed. 5. Centralized lubrication system for easy maintenance. 6. System safety device: When malfunctions such as irregular torques and abnormal feeding occur, machine will automatically stop for operation safety and machine durability. 7. Detecting in feed situation with sensor, automatically adjust labeling speed according to feeding situation of production line,making production line coherent. 8. Automatic label tension control system for stable and precise labeling.
Adhesives: Hot-melt adhesives, glues, and thermal-activity adhesives.
Label material: OPP, BOPP, thermal-activity adhesives and matte paper.
