Shrink-Sleeve Labeling Machine

Sleeve application and shrinking equipment for full-body, partial-body and tamper-evident labels.

Shrink sleeves
Bottle & can formats
Steam or hot-air tunnel

Compare specifications Request a proposal

Shrink-Sleeve Labeling Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Model	PM-150	PM-250	PM-250D	PM-300	PM-400
Capacity(On the baselabel length:500ml)	150 bottles/min	250 bottles/min	250 bottles/min	300 bottles/min	400bottles/min
Label heights	30~250mm	30~250mm	30~250mm	30~250mm	30~250mm
Bottle diameter	28~125mm	28~125mm	28~125mm	28~125mm	28~125mm
Thickness of label	0.03~0.13 mm	0.03~0.13 mm	0.03~0.13 mm	0.03~0.13 mm	0.03~0.13 mm
Label material	PVC/ PET	PVC/ PET	PVC/ PET	PVC/ PET	PVC/ PET
Machine weight	550KG	600KG	700KG	800KG	950KG
Overall machine size(mm)	2100x850x2100	2100x1100x2100	3200x1200x2070	2600x1100x2200	2600x1100x2200

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

Pharmaceutical & Healthcare Industry
Suitable : Medicine, Health products Bottle Material : PET / PE / Glass / Metal Bottle Type : Round / Square / Unique Label Material : PVC/PET Shrink Label
Food & Beverage Industry
Suitable: Bottled water, yogurt cup, canned food etc
Bottle Material : PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Material : PVC/PET Shrink Label
Daily chemical & Beauty Industry
Suitable : Daily chemical products, comestic products etc
Label Material : PVC/PET Shrink Label

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

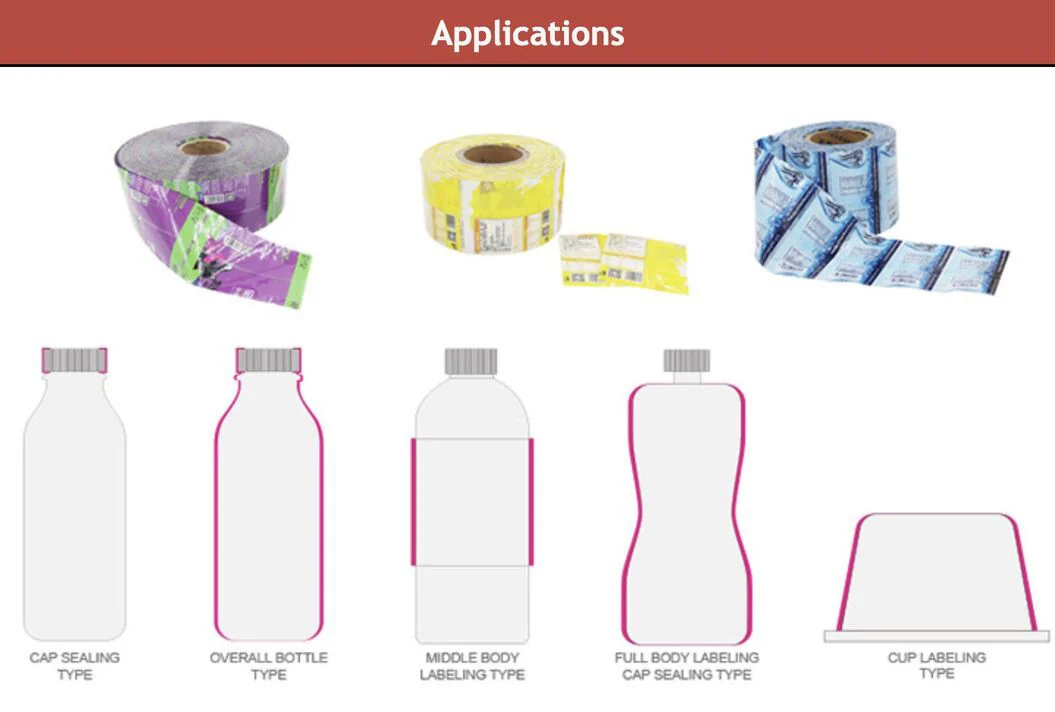

PLANET MACHINE offers a full range of shrink sleeve label applicators for low, medium, and high-speed production environments. All of our shrink material applicators are capable of performing up to five key sleeving applications: Full body sleeves, Full body over-the-cap sleeves, Partial body sleeves, Tamper evident bands, Multi-packs etc. Paima Packaging also offers wide label format models capable of handling label widths up to 900mm. our shrink sleeve label applicators and machine systems are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products, and personal care products. Their flexibility and reliable performance make them one of the best values in the shrink sleeving industry.

01 / MACHINE STAGE

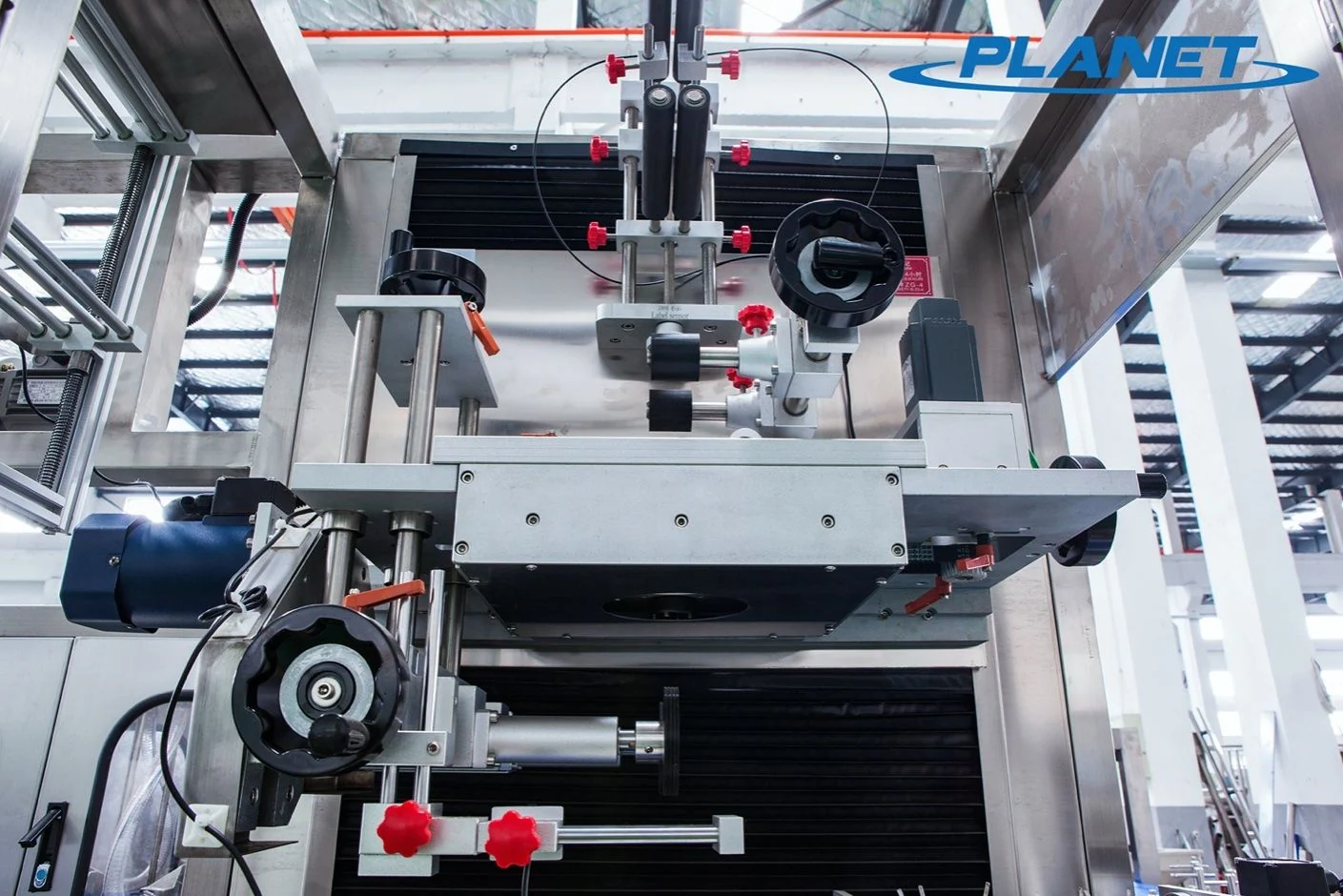

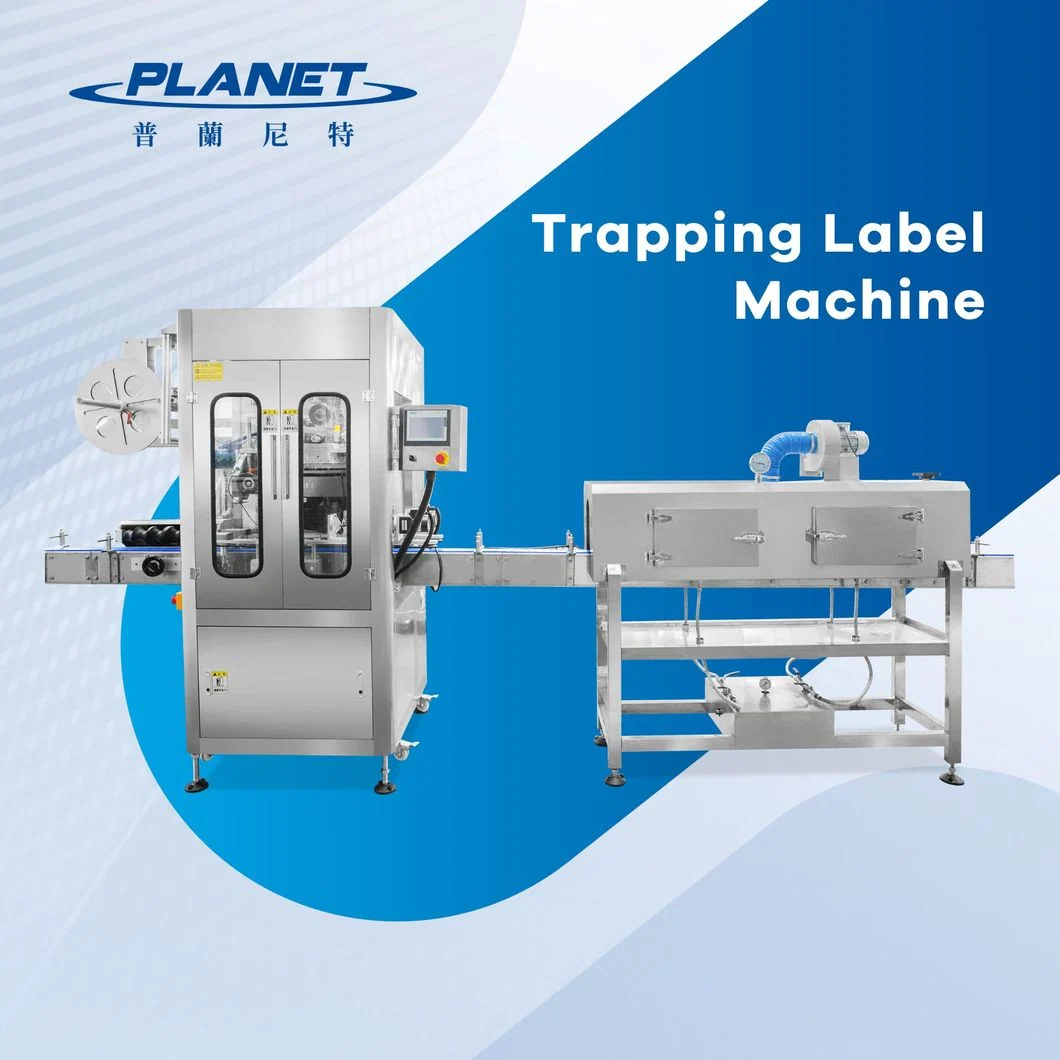

Overview of shrink labeling machine

(1) PM-series Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds. (2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling. (3) Unit cutter head plane design in China which apply to the container of ∮30 mm-∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
(4) Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.

02 / MACHINE STAGE

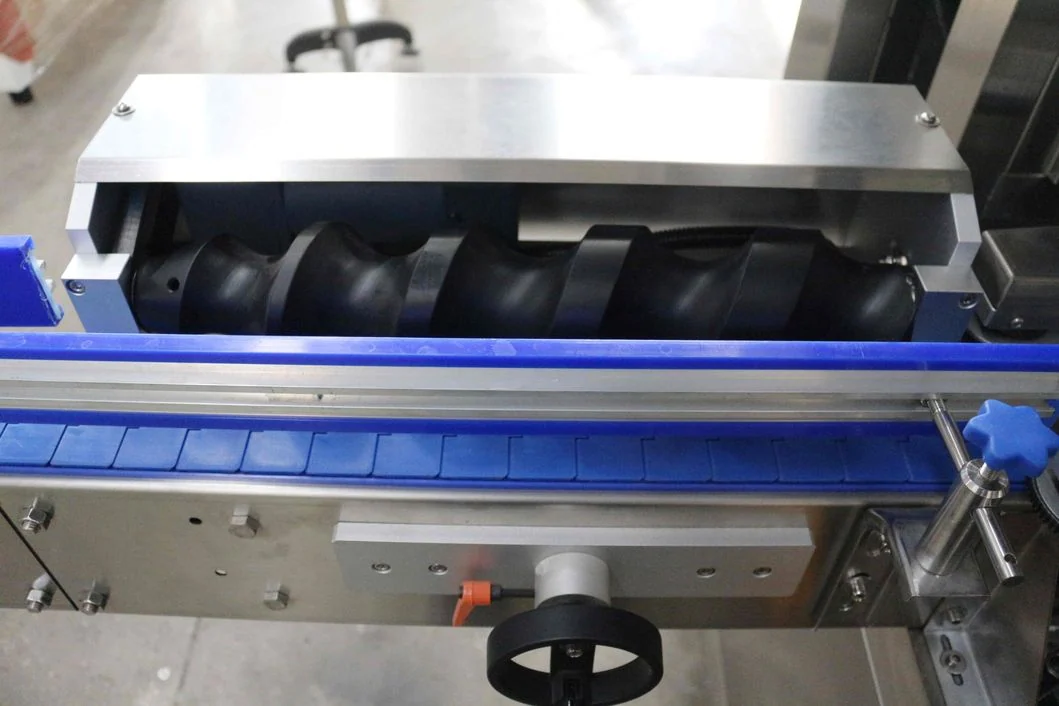

Separating Screw

Put the label on the bottle, and use the fixed-distance conveying of the screw to separate the bottles at equal distances to facilitate the labeling.

03 / MACHINE STAGE

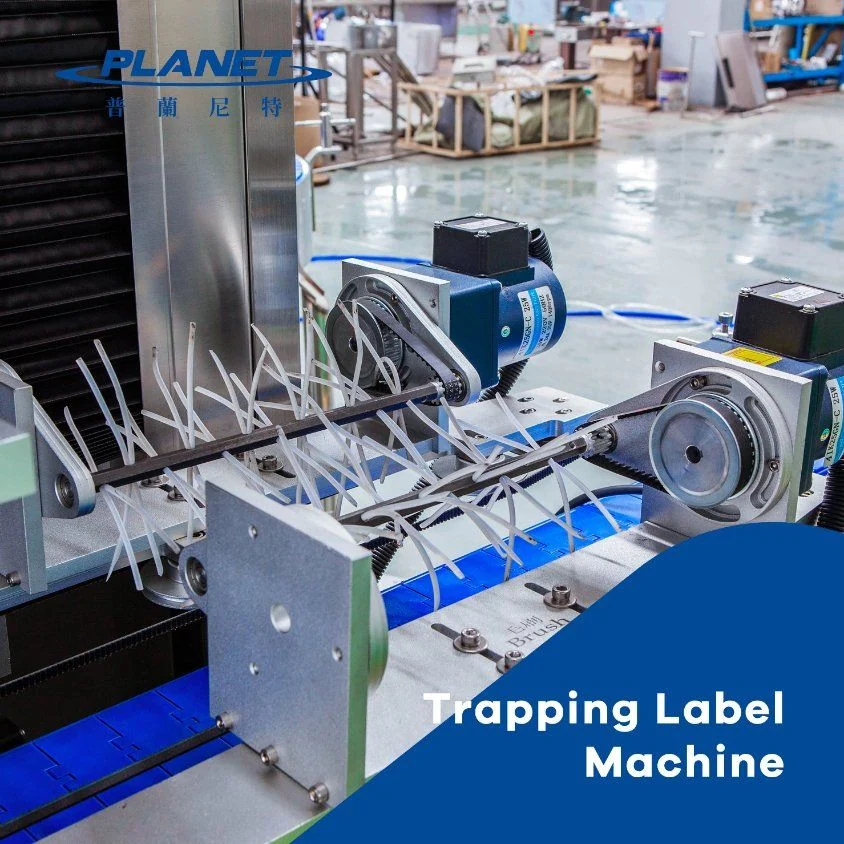

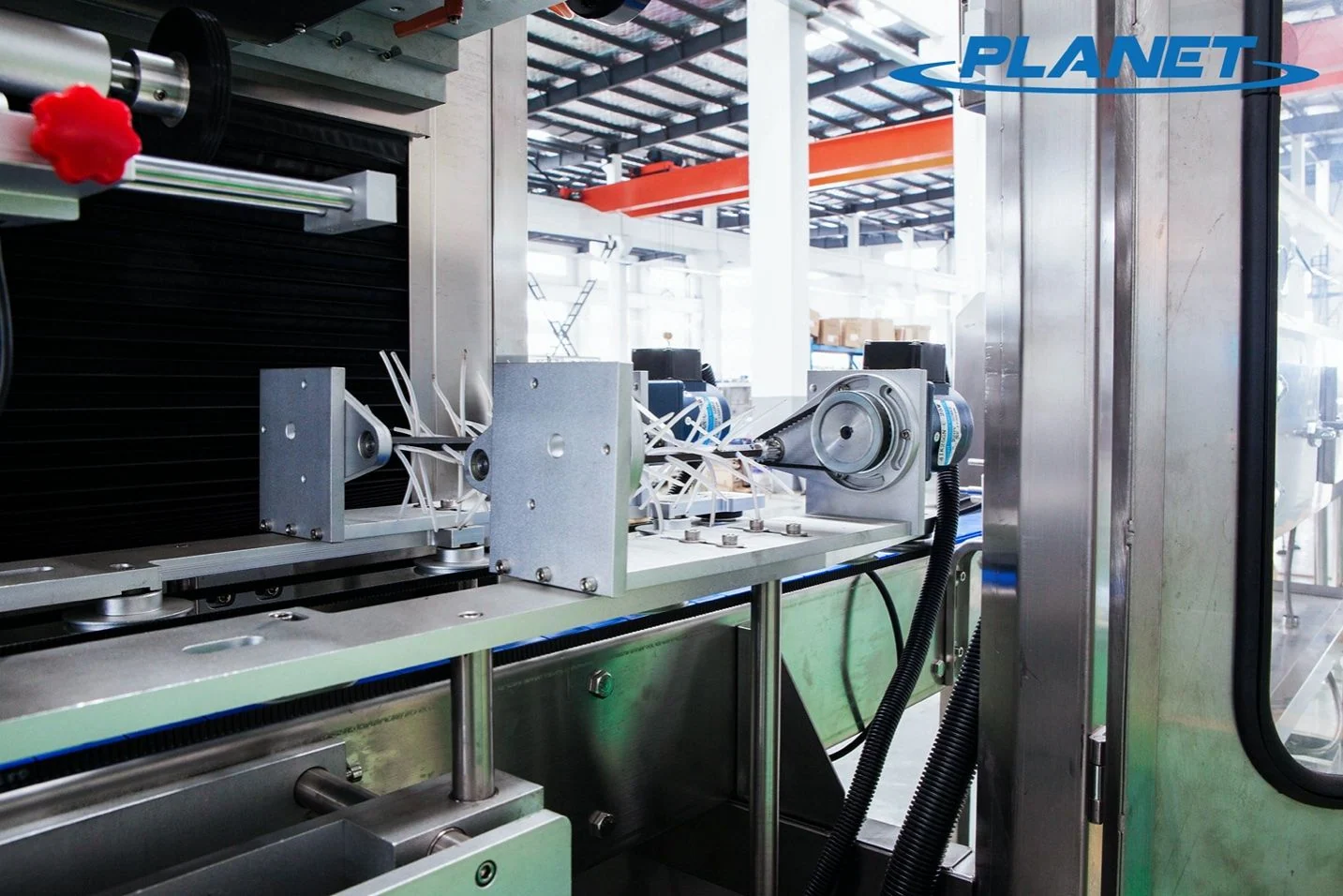

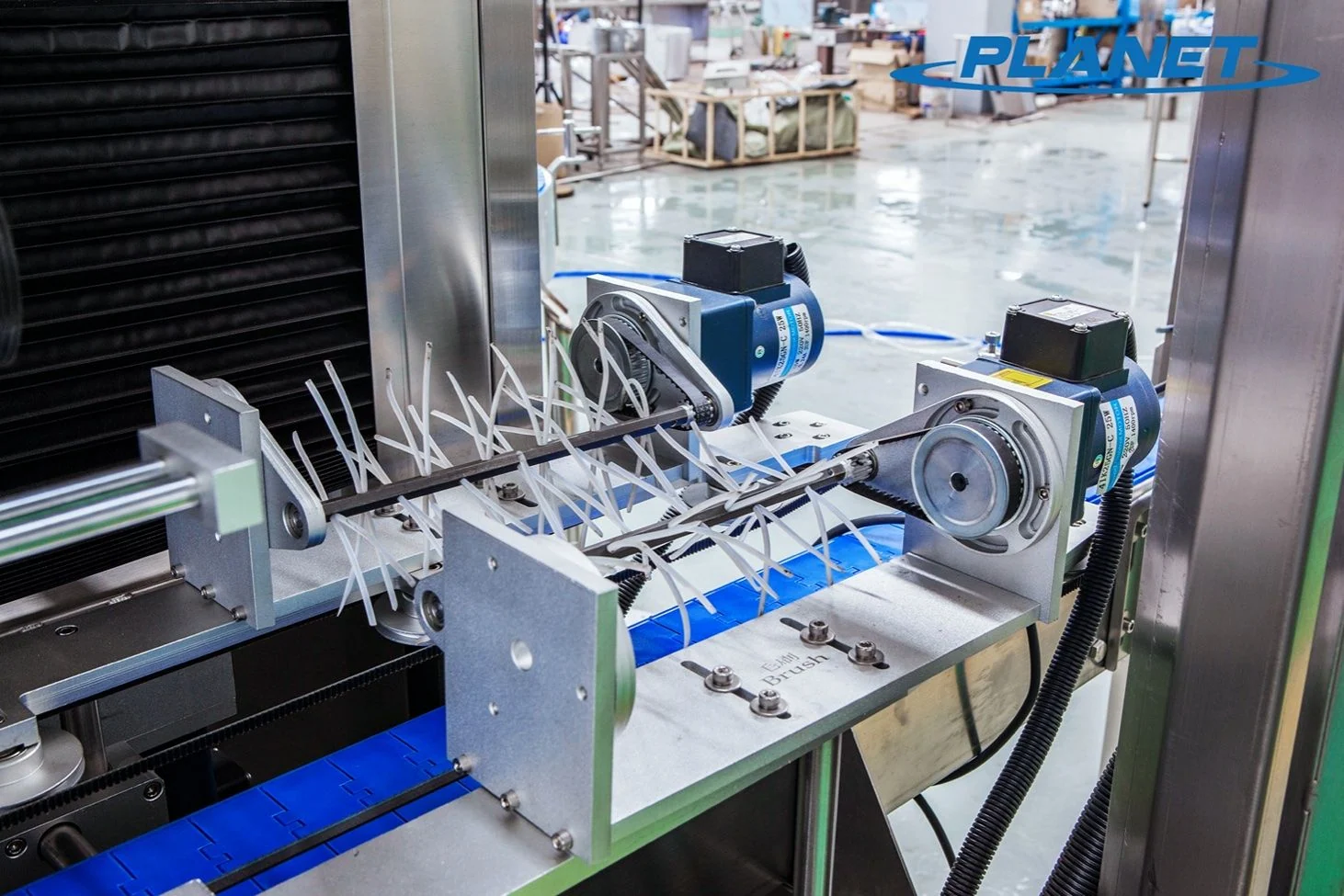

Rubber underbrushes

Use rubber to brush the label sleeved in the bottle until it is positioned to avoid incorrect label position.

04 / MACHINE STAGE

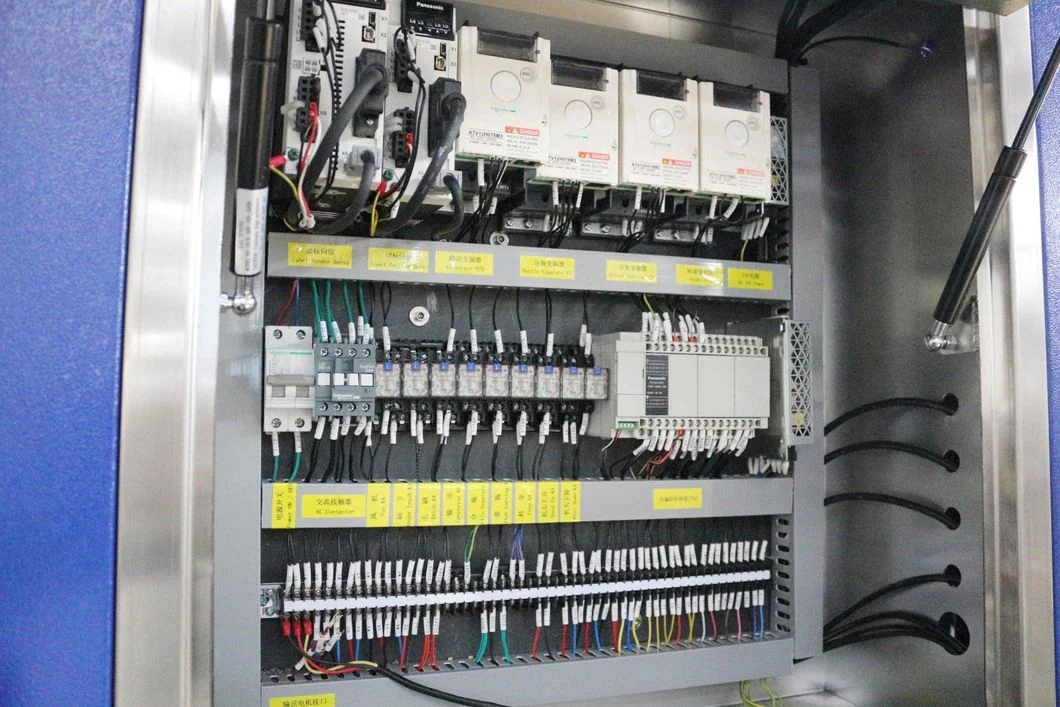

Electric box

Use well-known brand electrical components, such as Siemens, Schneider, Mitsubishi, ABB etc.

05 / MACHINE STAGE

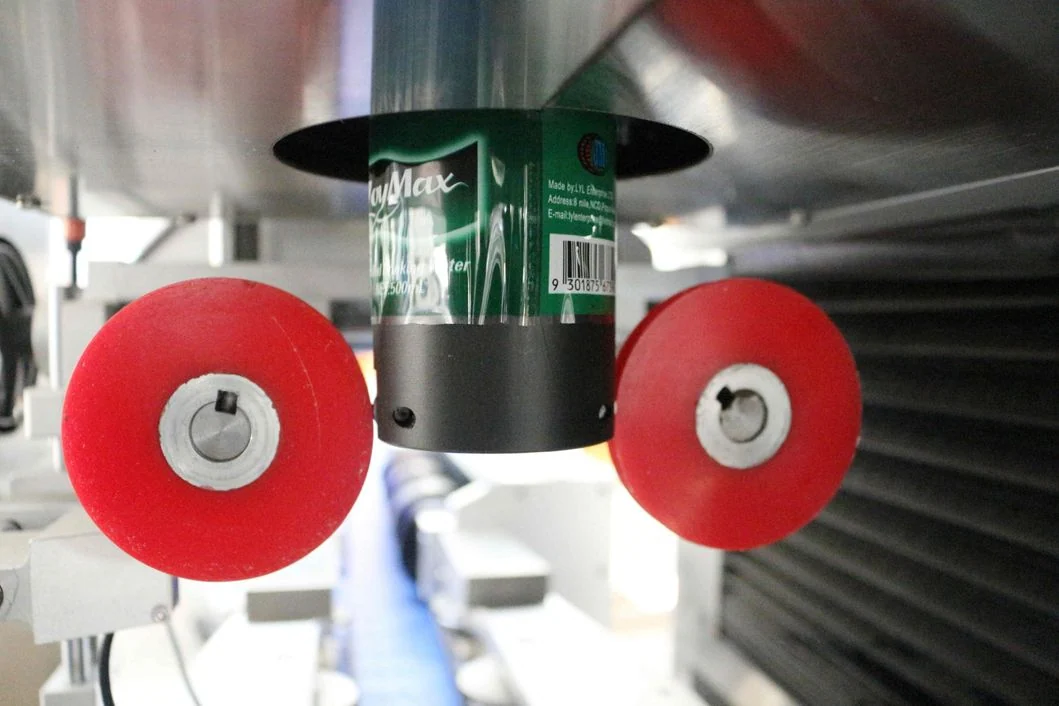

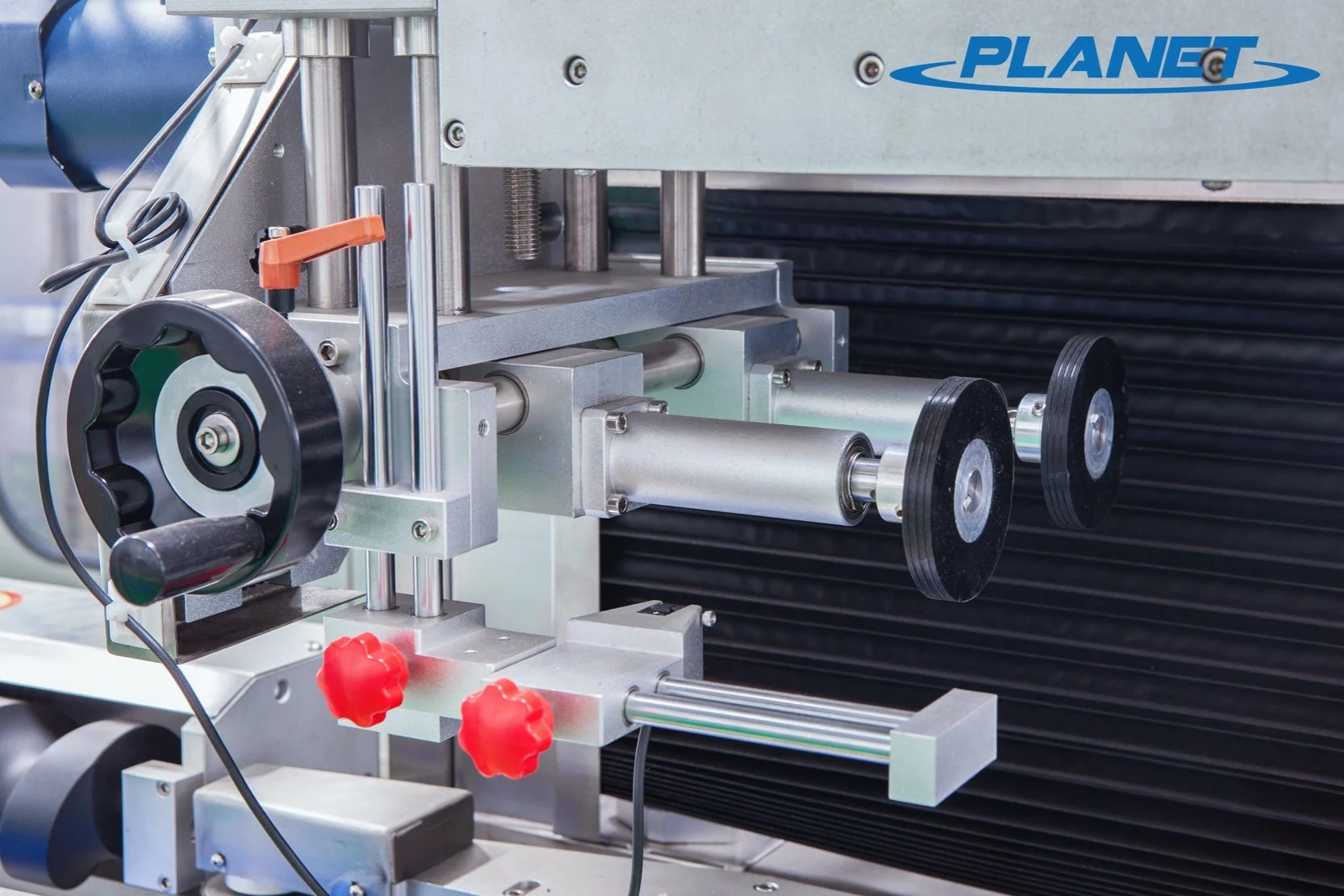

Drive rollers

It adopts single-group or double-group mechanism synchronous servo motor control, so that the shrink film can be conveyed in a fixed size.

06 / MACHINE STAGE

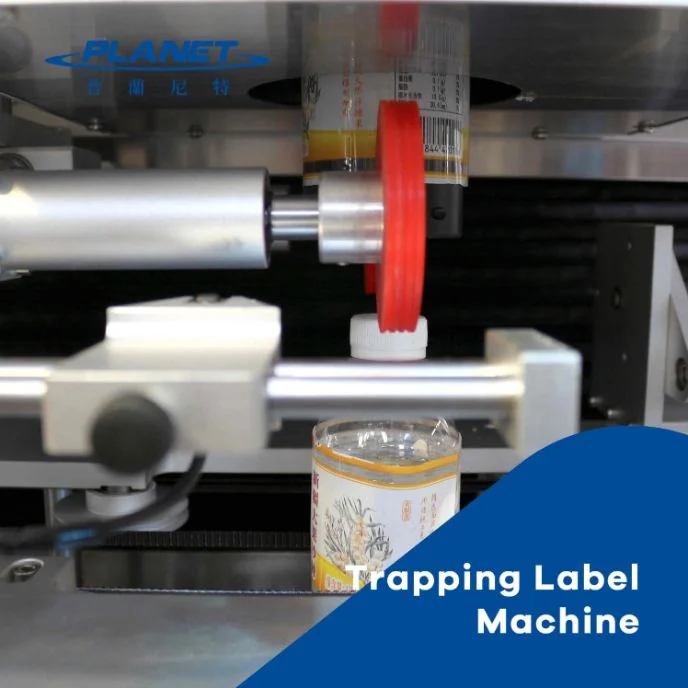

Cutter set

Built-in blade, planetary pairing method and deflection crankshaft-type steel structure to cut the shrink film.

07 / MACHINE STAGE

Conveyor Belt

Use the frequency converter to adjust the conveyor belt speed to match the speed suitable for the production capacity.

08 / MACHINE STAGE

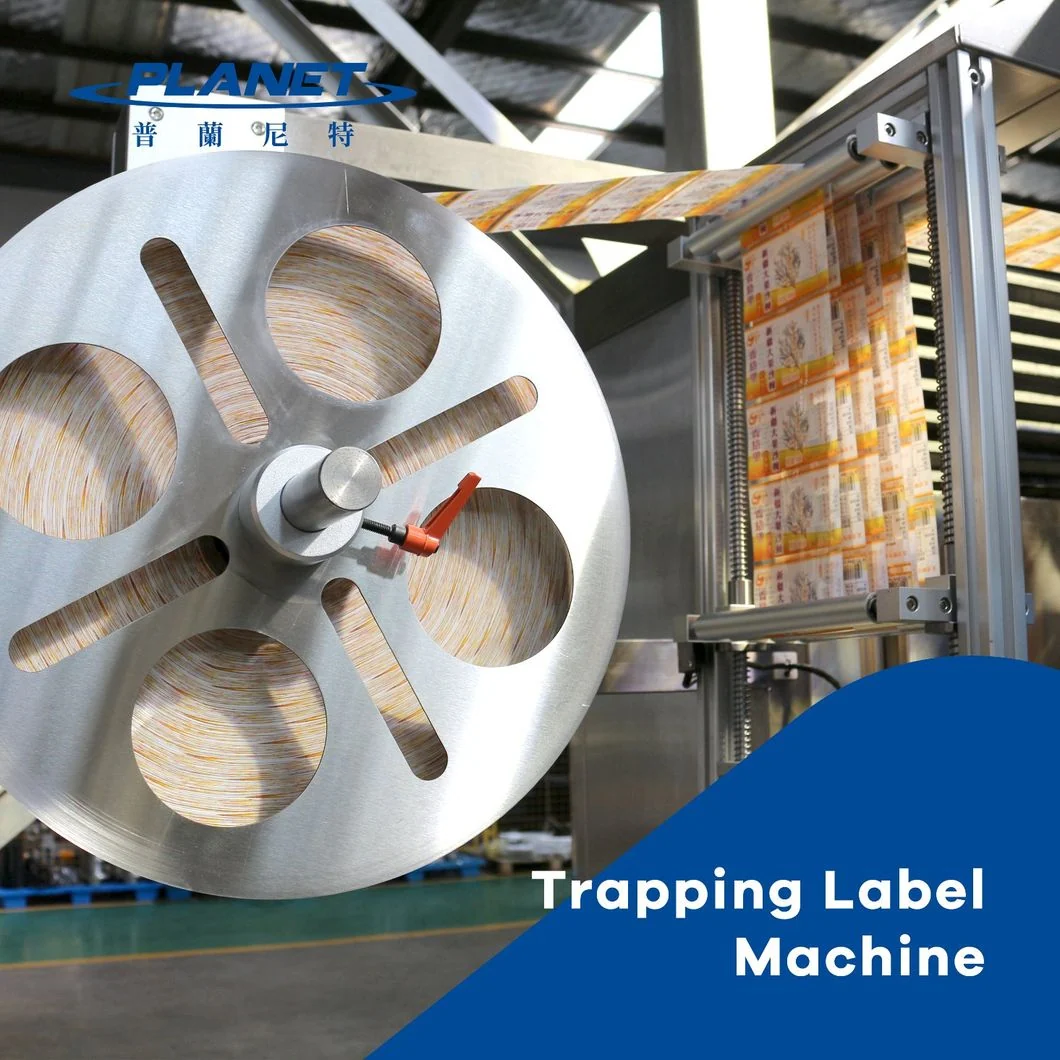

Feeding Group

It is composed of a feeder box that controls the tension of the label feeding and a feeder rack above the electric eye rack group where the label is turned and positioned to convey the label film material.

09 / MACHINE STAGE

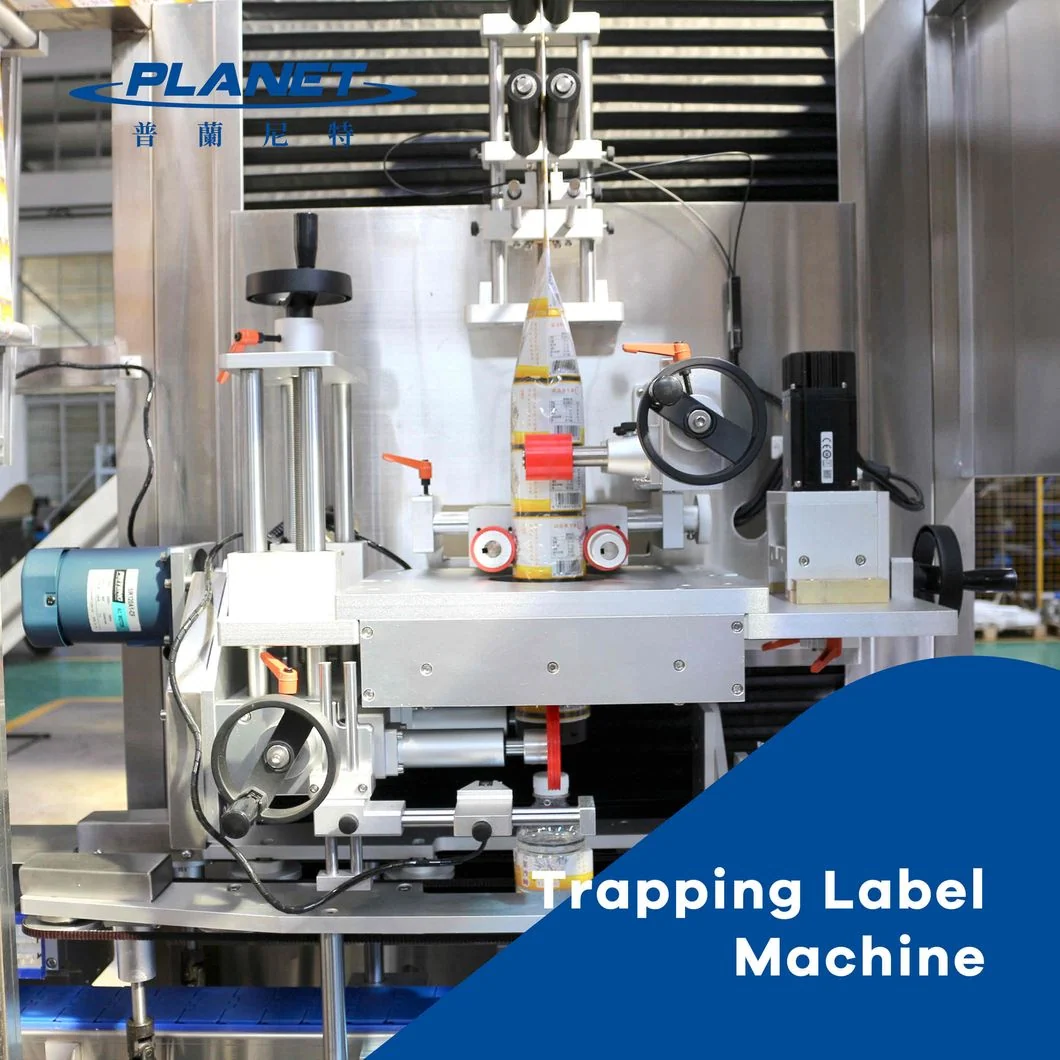

Center colum

Put the label film material in and open, so that the film material can be conveyed and cut. The whole machine is made of aluminum alloy with anode treatment and 304 stainless steel material, used to support the host and fix the conveyor belt.

10 / MACHINE STAGE

PLC Control System

It is the control center of this machine. Each operation display page is divided into manual, automatic, setting, abnormal display, etc. In addition, there are several auxiliary knobs, which are used to operate the labeling operation.

11 / MACHINE STAGE

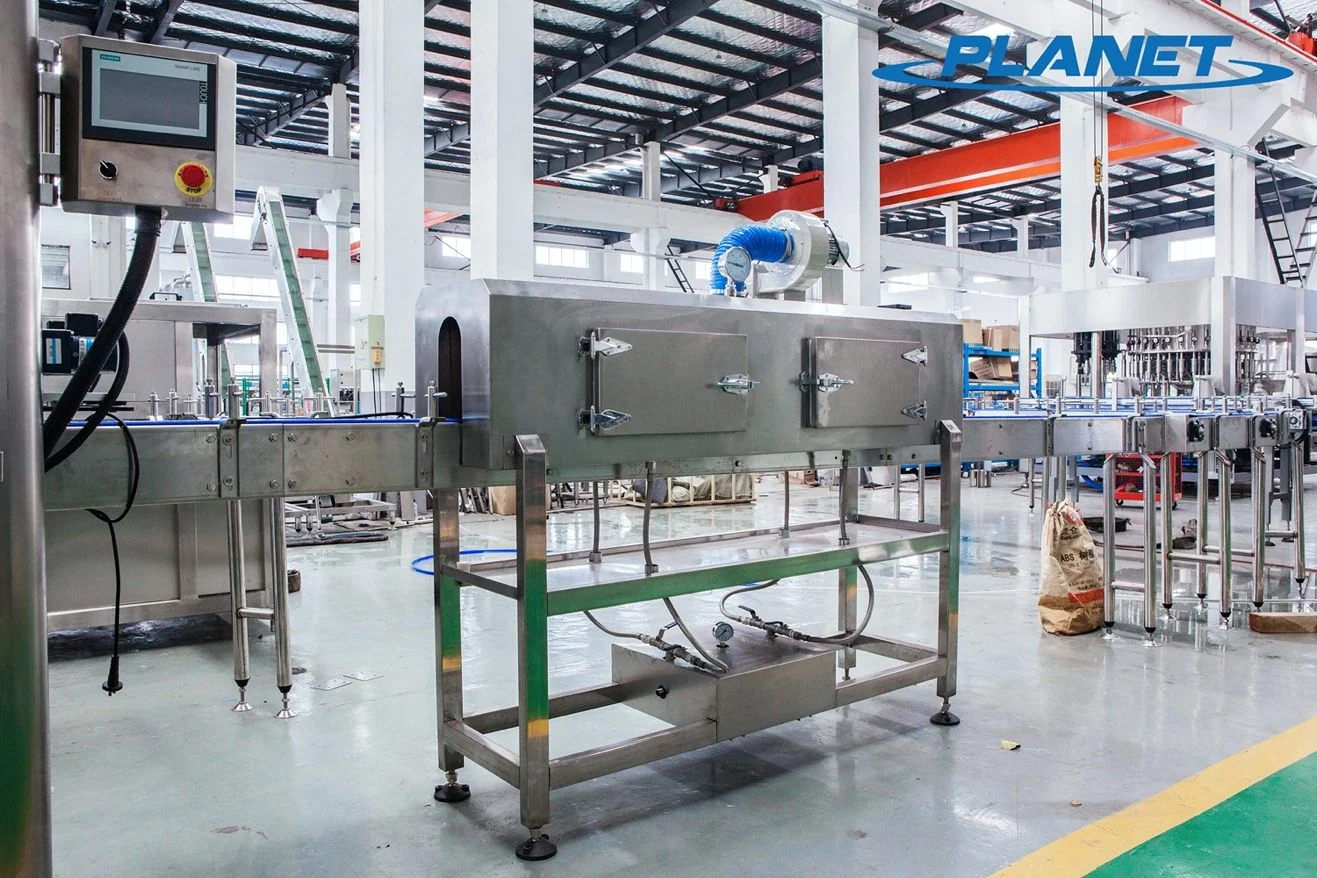

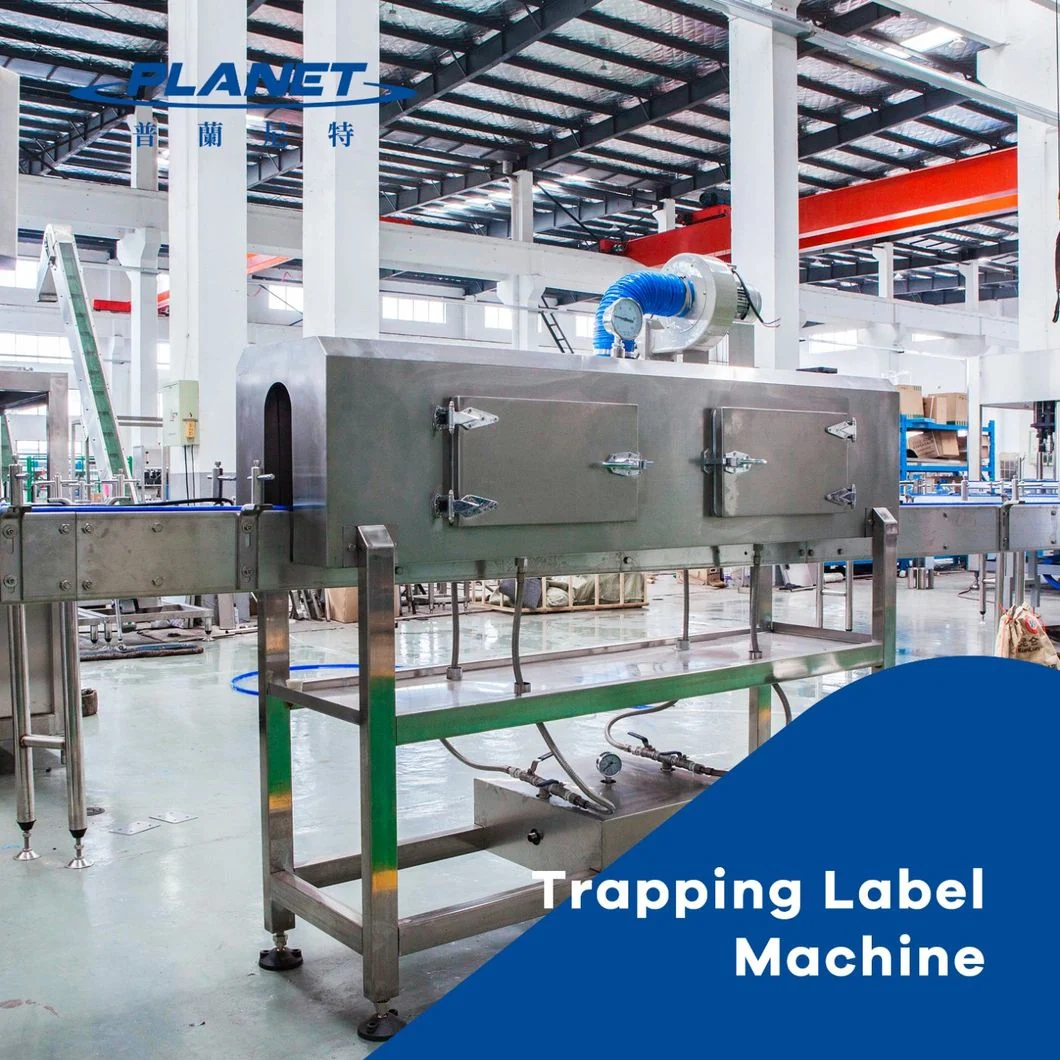

Steam heat shrink tunnel

Tunnel provides the support for making hot sleeves which can be readily wrapped on products or containers. The tunnels are available with different mechanisms which can be chosen based on the wrapping material and its compatibility with the type of heat produced inside the tunnel. Consumers can choose hot steam tunnel or electric heat tunnels as per the labeling material texture and compatibility.

12 / MACHINE STAGE

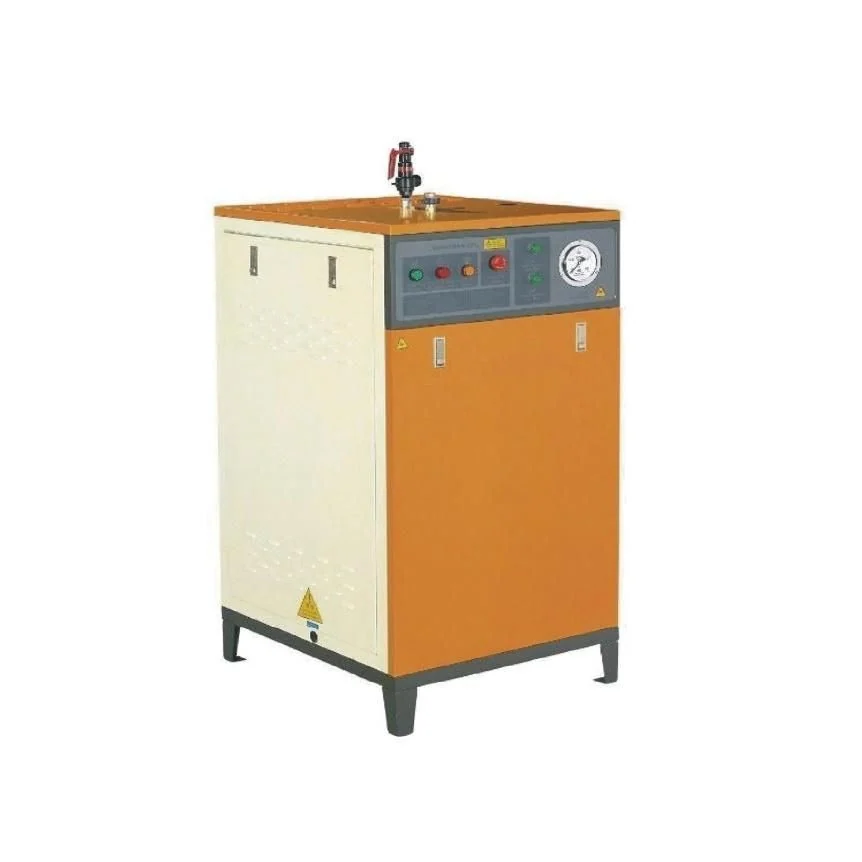

Steam Generator

The steam pressure is 3.5 bar, then open the steam hand valve to about 45 degrees, let the steam shrinking furnace heat up, and observe the temperature gauge on the shrinking furnace at 95-100 degrees.
